Iscar ISCAR 5505131

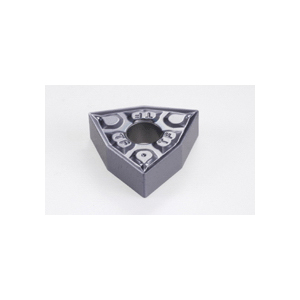

Iscar 5505131 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 431-TF IC907, WNMG Insert, Material Grade: H, K, M, N, P, S, 431 Insert, Trigon Shape, 08 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Insert Wnmg 431 Tf Ic907
In stock
(20)
Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 431 Insert, Trigon, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, Positive Rake, TF Chipbreaker, 0.4 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: IC907, ANSI Code: WNMG 431-TF IC907, ISO Code: WNMG 080404-TF IC907, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Double-sided trigon insert, positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- Chipbreaker on both sides with hole
Specifications
ANSI CodeWNMG 431-TF IC907
ChipbreakerTF
Corner Radius0.4 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size431
Insert StyleWNMG
ISO CodeWNMG 080404-TF IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size08
SeriesISOTURN
ShapeTrigon
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
