Iscar ISCAR 5504876

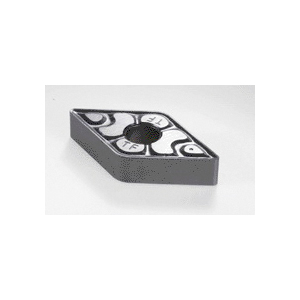

Iscar 5504876 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG 432 TF IC907, DNMG Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Rhombic Shape, 15 Seat, Positive Rake, Carbide, Manufacturers Grade: IC907
Invoice description:
Insert Dnmg 432 Tf Ic907
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 432 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, 5.1562 mm Hole Dia, Manufacturers Grade: IC907, ANSI Code: DNMG 432 TF IC907, ISO Code: DNMG 150408-TF IC907, 55 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN+TiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- IC907 grade a tough sub-micron substrate, TiAlN PVD coated
- Suitable for low-to-medium cutting speeds
- Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel
Specifications
ANSI CodeDNMG 432 TF IC907
ChipbreakerTF
Corner Radius0.8 mm
FinishPVD-TiAlN+TiN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter5.1562 mm
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleDNMG
ISO CodeDNMG 150408-TF IC907
Manufacturers GradeIC907
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size15
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
Additional Information
Country of OriginIL
