Iscar ISCAR 5505573

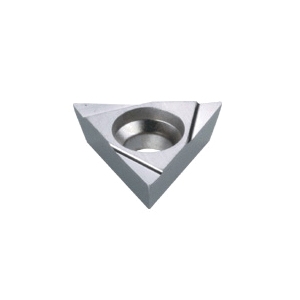

Iscar 5505573 ISOTURN Turning Insert, ANSI Code: TPGX 220-L IC908, TPGX Insert, Material Grade: H, K, M, P, S, 220 Insert, Triangular Shape, 11 Seat, Positive Rake, Left Hand Cutting, Carbide, Manufacturers Grade: IC908
Invoice description:
Tpgx 220-l Ic908
Pack Size: 10
UNSPSC:
23242107
Manufacturer PN: 5505573
$16.40 EA
Factory OrderEstimated to ship in 14 days

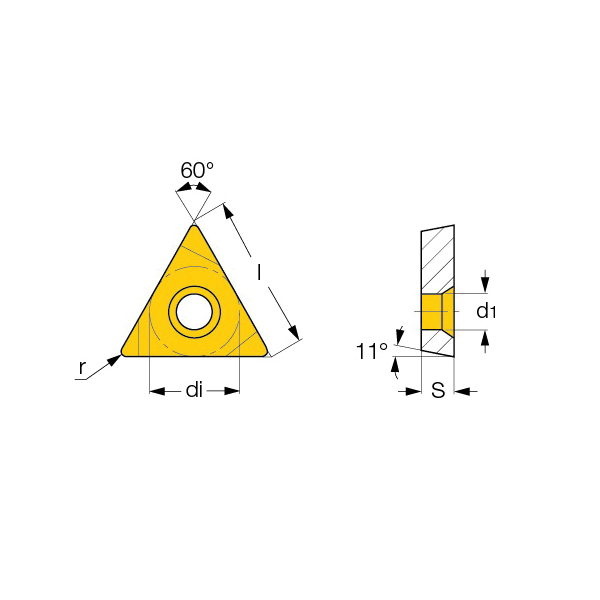

Iscar Turning Insert, Series: ISOTURN, TPGX Insert, 220 Insert, Triangular, 2.5 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 3.18 mm Thickness, 11 Seat, Positive Rake, L Chipbreaker, 0.2 mm Corner Radius, 3.5 mm Hole Dia, Manufacturers Grade: IC908, ANSI Code: TPGX 220-L IC908, ISO Code: TPGX 110302-L IC908, 60 deg Included Angle, 11 deg Relief Angle, Left Hand Cutting, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Features
- Positive flank inserts with a ground chipformer
- Provides excellent surface finish
- IC908 grade a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
Specifications
ApplicationFinishing Applications
ANSI CodeTPGX 220-L IC908
ChipbreakerL
Corner Radius0.2 mm
Cutting DirectionLeft Hand
FinishPVD-TiAlN Coated
For Use OnStainless Steel, Steel, Cast Iron, Hardened Steel and High Temperature Alloys
Hole Diameter3.5 mm
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size220
Insert StyleTPGX
ISO CodeTPGX 110302-L IC908
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle11 deg
Seat Size11
SeriesISOTURN
ShapeTriangular
Thickness3.18 mm
Additional Information
Country of OriginIL
