Iscar ISCAR 5505262

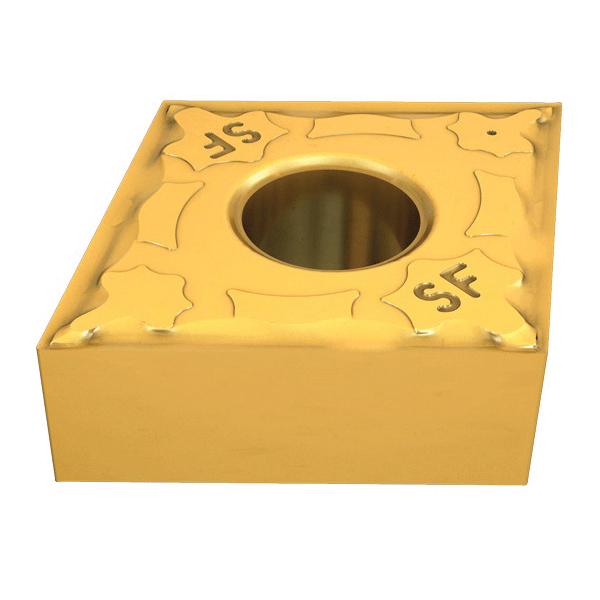

Iscar 5505262 ISOTURN Turning Insert, ANSI Code: CNGG 430-SF, CNGG Insert, 430 Insert, Rhombic Shape, Manufacturers Grade: IC907
Invoice description:
Insert Cngg 430-sf Ic907
Factory Order
Iscar Turning Insert, Series: ISOTURN, CNGG Insert, 430 Insert, Rhombic, 1/2 in Inscribed Circle, 0.187 in Thickness, 0.004 in Corner Radius, Manufacturers Grade: IC907, ANSI Code: CNGG 430-SF, ISO Code: CNMG/CNGG-SF, 80 deg Included Angle
Features
- Double sided 80 deg rhombic inserts for super finishing
- Controls chip flow at very low feeds and depths of cut
- Excellent crater wear resistance
Specifications
ApplicationISO Turning
ANSI CodeCNGG 430-SF
Corner Radius0.004 in
Included Angle80 deg
Inscribed Circle1/2 in
Insert Size430
Insert StyleCNGG
ISO CodeCNMG/CNGG-SF
Manufacturers GradeIC907
SeriesISOTURN
ShapeRhombic
Thickness0.187 in
Additional Information
Standards/ApprovalISO 13399
