Iscar ISCAR 6498841

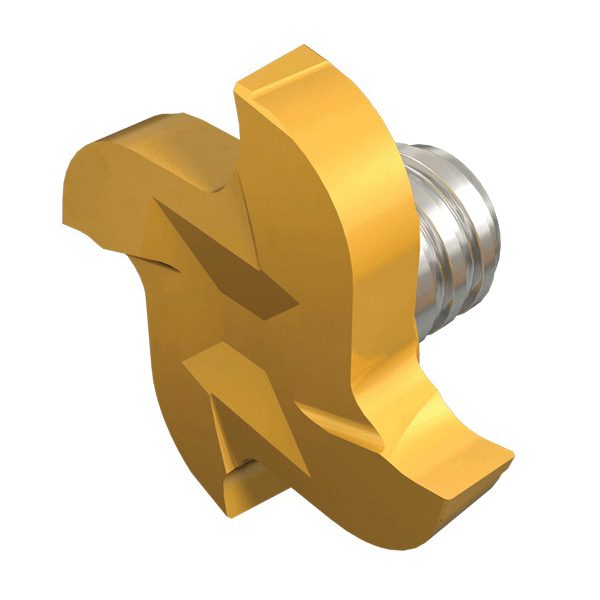

Iscar 6498841 MULTI-MASTER Interchangeable End Mill Head, ANSI Code: MM GRIT 22P-4.00-2.00, Solid Carbide, Manufacturers Grade: IC528, 4 Flutes

Invoice description: Mm Grit-22pk/p 28k/p Ic5 28 Groove Milling Inser

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 6498841
$87.18 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER, 21.7 mm Cutting Dia, 4.5 mm Maximum Depth of Cut, 4 Flutes, Manufacturers Grade: IC528, ANSI Code: MM GRIT 22P-4.00-2.00, ISO Code: MM GRIT-22K/P,28K/P, Solid Carbide

  • Features

  • MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads
  • "P" suffix for sharp cutting edge
  • "K" suffix for T-land on cutting edge, to be used on steel and cast iron

Specifications

ApplicationMilling
ANSI CodeMM GRIT 22P-4.00-2.00
Cutting Diameter21.7 mm
ISO CodeMM GRIT-22K/P,28K/P
Manufacturers GradeIC528
MaterialSolid Carbide
Maximum Depth of Cut4.5 mm
Number of Flutes4
SeriesMULTI-MASTER
TypeInterchangeable

Additional Information

Standards/ApprovalISO 13399
