Iscar ISCAR 5603777

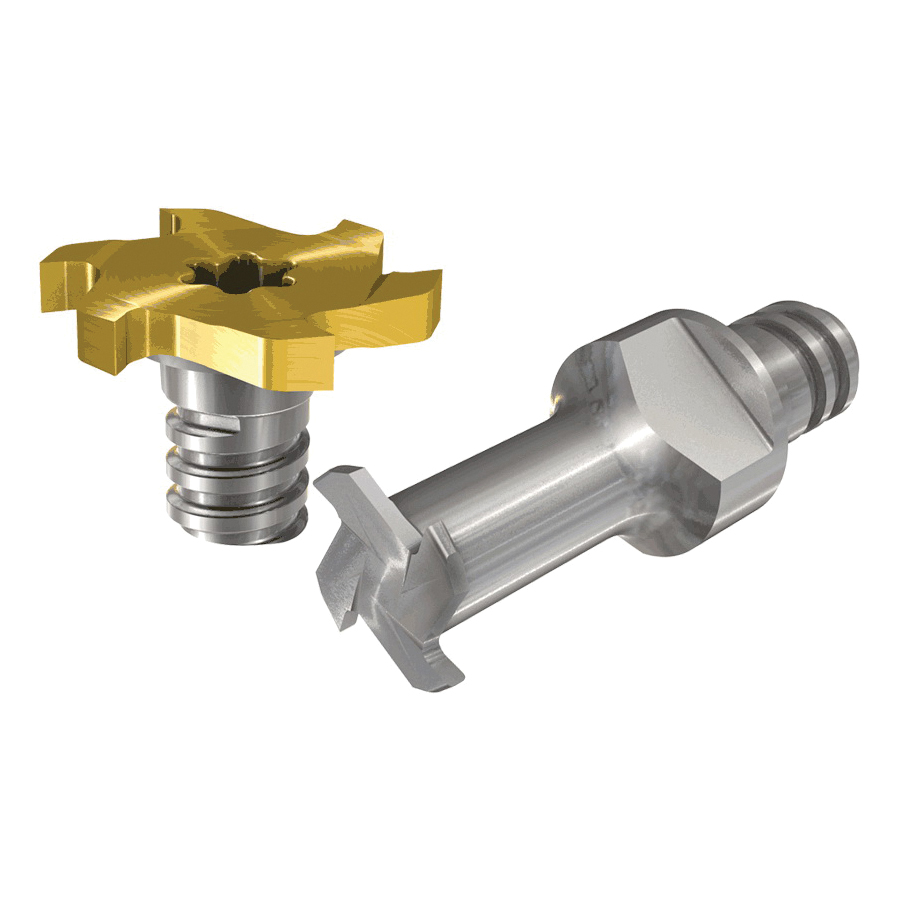

Iscar 5603777 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM TS.500-N062P-06T05 IC328, MM TS-N Milling Tip Style, T-Slot Milling Tip, Solid Carbide, Manufacturers Grade: IC328, 6 Flutes, Material Grade: M, P, S

Invoice description: Mm Ts.500-n062p-06t05 32 8

UNSPSC: 23291601
Manufacturer PN: 5603777
$85.38 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM TS-N Milling Tip, T-Slot, 12.7 mm Cutting Dia, 2.25 mm Maximum Depth of Cut, 6 Flutes, Manufacturers Grade: IC328, ANSI Code: MM TS.500-N062P-06T05 IC328, Solid Carbide, PVD-TiCN Coated, Material Grade: M, P, S

  • Features

  • Interchangeable solid carbide T-Slot milling heads with various corner radii and MULTI-MASTER threaded adaptation

Specifications

ApplicationT-Slotting, Internal Groove Milling and Side Slotting
ANSI CodeMM TS.500-N062P-06T05 IC328
Cutting Diameter12.7 mm
FinishPVD-TiCN Coated
Manufacturers GradeIC328
MaterialSolid Carbide
Material GradeM, P, S
Maximum Depth of Cut2.25 mm
Milling Tip StyleMM TS-N
Milling Tip TypeT-Slot
Number of Flutes6
SeriesMULTI-MASTER
TypeInterchangeable

Additional Information

Country of OriginIS
