Iscar ISCAR 3336733

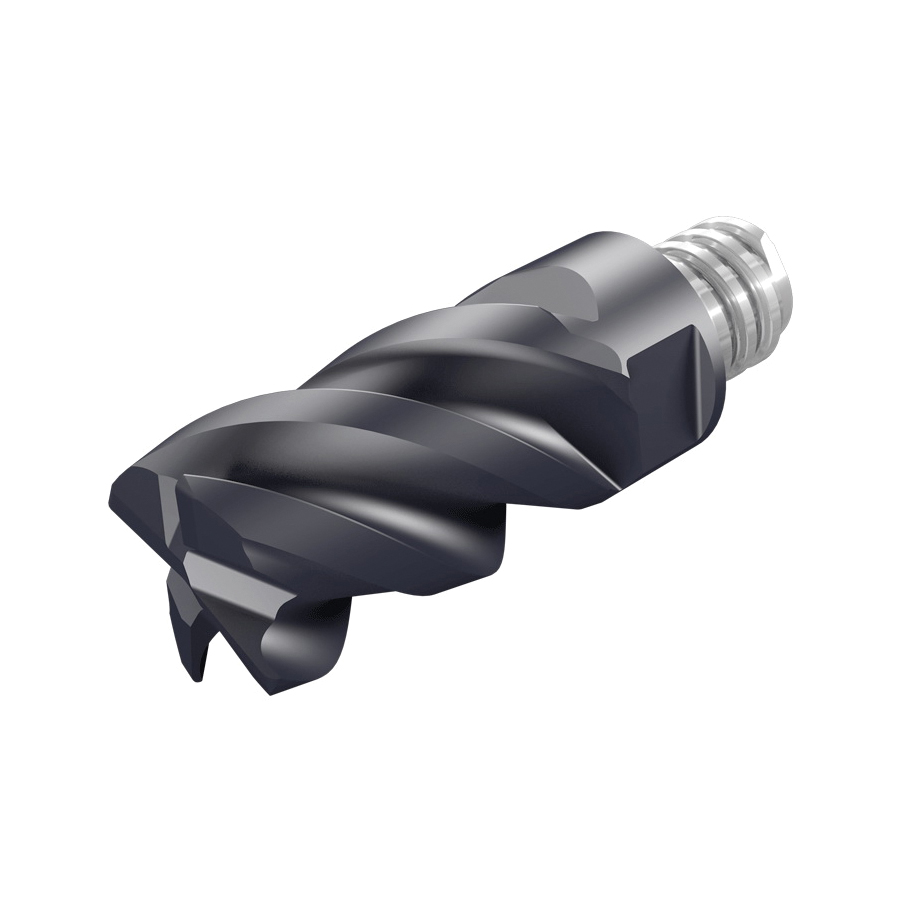

Iscar 3336733 MULTI-MASTER CHATTERFREE Interchangeable End Mill Head, ANSI Code: MM EC500H75R015CF-4T08, Solid Carbide, 0.015 in Corner Radius, Manufacturers Grade: IC908, 4 Flutes

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 3336733
$223.42 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER CHATTERFREE, 1/2 in Cutting Dia, 3/4 in Maximum Depth of Cut, 4 Flutes, 0.015 in Corner Radius, Manufacturers Grade: IC908, ANSI Code: MM EC500H75R015CF-4T08, ISO Code: MM EC-CF-Z4-1.5xD, Solid Carbide, PVD-TiAlN Coated

  • Features

  • Interchangeable solid carbide heads with variable pitch and 1.5xD flute lengths for chatter free roughing and finishing operations
  • High material removal rates

Specifications

ApplicationMilling
ANSI CodeMM EC500H75R015CF-4T08
Corner Radius0.015 in
Cutting Diameter1/2 in
FinishPVD-TiAlN Coated
ISO CodeMM EC-CF-Z4-1.5xD
Manufacturers GradeIC908
MaterialSolid Carbide
Maximum Depth of Cut3/4 in
Number of Flutes4
SeriesMULTI-MASTER CHATTERFREE
TypeInterchangeable
