Iscar ISCAR 5603779

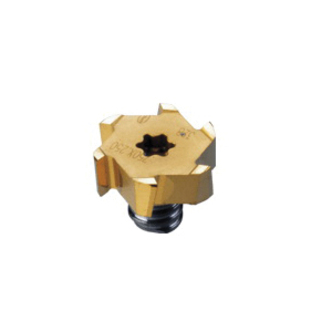

Iscar 5603779 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM TS.500-H125D-06T05 IC328, MM TS-H Milling Tip Style, T-Slot Milling Tip, Solid Carbide, 0.015 in Corner Radius, Manufacturers Grade: IC328, 6 Flutes, Material Grade: M, P, S
Invoice description:
Mm Ts.500-h125d-06t05 32 8
Factory Order
Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM TS-H Milling Tip, T-Slot, 1/2 in Cutting Dia, 0.088 in Maximum Depth of Cut, 6 Flutes, 0.015 in Corner Radius, Manufacturers Grade: IC328, ANSI Code: MM TS.500-H125D-06T05 IC328, Solid Carbide, PVD-TiCN Coated, Material Grade: M, P, S
Features
- Interchangeable solid carbide T-Slot milling heads with various corner radii and MULTI-MASTER threaded adaptation

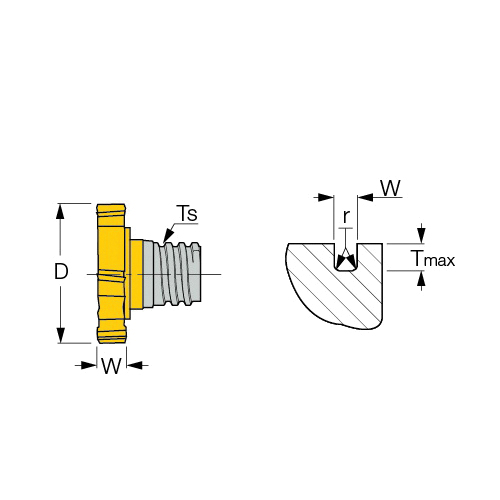

Specifications
ApplicationT-Slotting, Internal Groove Milling and Side Slotting
ANSI CodeMM TS.500-H125D-06T05 IC328
Corner Radius0.015 in
Cutting Diameter1/2 in
FinishPVD-TiCN Coated
Manufacturers GradeIC328
MaterialSolid Carbide
Material GradeM, P, S
Maximum Depth of Cut0.088 in
Milling Tip StyleMM TS-H
Milling Tip TypeT-Slot
Number of Flutes6
SeriesMULTI-MASTER
TypeInterchangeable
Additional Information
Country of OriginIL
