Iscar ISCAR 3336736

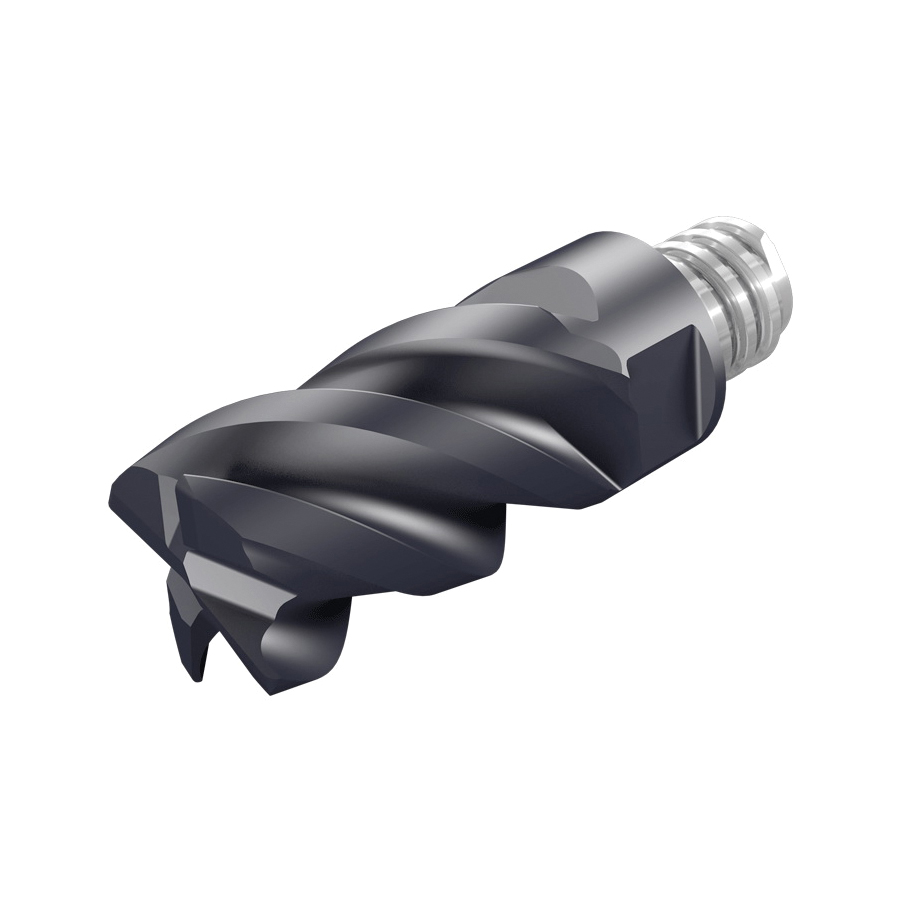

Iscar 3336736 MULTI-MASTER CHATTERFREE Interchangeable End Mill Head, ANSI Code: MM EC750H112R031CF-4T12, Solid Carbide, 0.031 in Corner Radius, Manufacturers Grade: IC908, 4 Flutes

Invoice description: Mm Ec750h112r031cf-4t12 9 Klune Pricing

UNSPSC: 23291601
Manufacturer PN: 3336736
$402.65 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER CHATTERFREE, 3/4 in Cutting Dia, 1-1/8 in Maximum Depth of Cut, 4 Flutes, 0.031 in Corner Radius, Manufacturers Grade: IC908, ANSI Code: MM EC750H112R031CF-4T12, ISO Code: MM EC-CF-Z4-1.5xD, Solid Carbide, PVD-TiAlN Coated

  • Features

  • Interchangeable solid carbide heads with variable pitch and 1.5xD flute lengths for chatter free roughing and finishing operations
  • High material removal rates

Specifications

ApplicationMilling
ANSI CodeMM EC750H112R031CF-4T12
Corner Radius0.031 in
Cutting Diameter3/4 in
FinishPVD-TiAlN Coated
ISO CodeMM EC-CF-Z4-1.5xD
Manufacturers GradeIC908
MaterialSolid Carbide
Maximum Depth of Cut1-1/8 in
Number of Flutes4
SeriesMULTI-MASTER CHATTERFREE
TypeInterchangeable

Additional Information

Standards/ApprovalISO 13399
