Iscar ISCAR 5603784

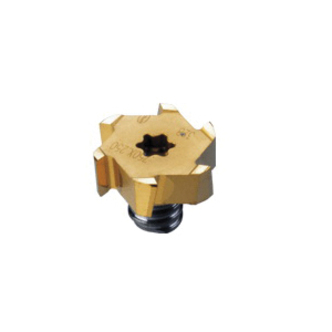

Iscar 5603784 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM TS1.00-H250D-06T10 IC328, MM TS-H Milling Tip Style, T-Slot Milling Tip, Solid Carbide, 0.015 in Corner Radius, Manufacturers Grade: IC328, 6 Flutes, Material Grade: M, P, S

UNSPSC: 23291601
Manufacturer PN: 5603784
$126.64 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM TS-H Milling Tip, T-Slot, 1 in Cutting Dia, 0.177 in Maximum Depth of Cut, 6 Flutes, 0.015 in Corner Radius, Manufacturers Grade: IC328, ANSI Code: MM TS1.00-H250D-06T10 IC328, Solid Carbide, PVD-TiCN Coated, Material Grade: M, P, S

  • Features

  • Interchangeable solid carbide T-Slot milling heads with various corner radii and MULTI-MASTER threaded adaptation

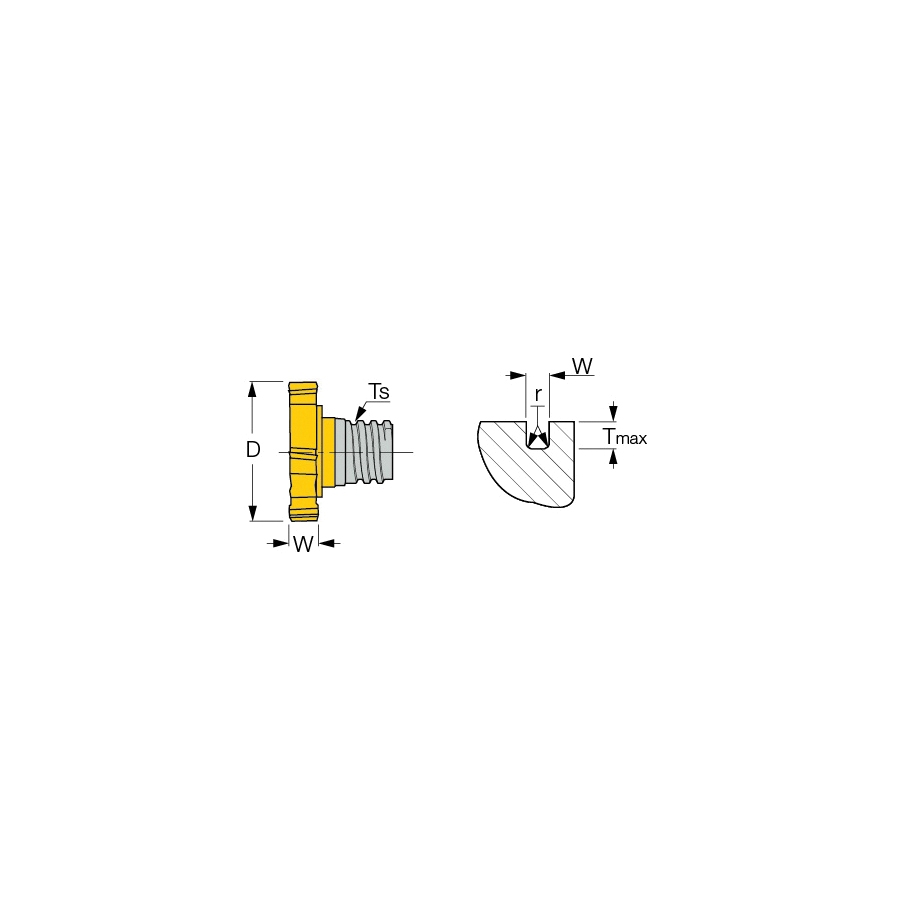

Specifications

ApplicationT-Slotting, Internal Groove Milling and Side Slotting
ANSI CodeMM TS1.00-H250D-06T10 IC328
Corner Radius0.015 in
Cutting Diameter1 in
FinishPVD-TiCN Coated
Manufacturers GradeIC328
MaterialSolid Carbide
Material GradeM, P, S
Maximum Depth of Cut0.177 in
Milling Tip StyleMM TS-H
Milling Tip TypeT-Slot
Number of Flutes6
SeriesMULTI-MASTER
TypeInterchangeable
