Iscar ISCAR 6498769

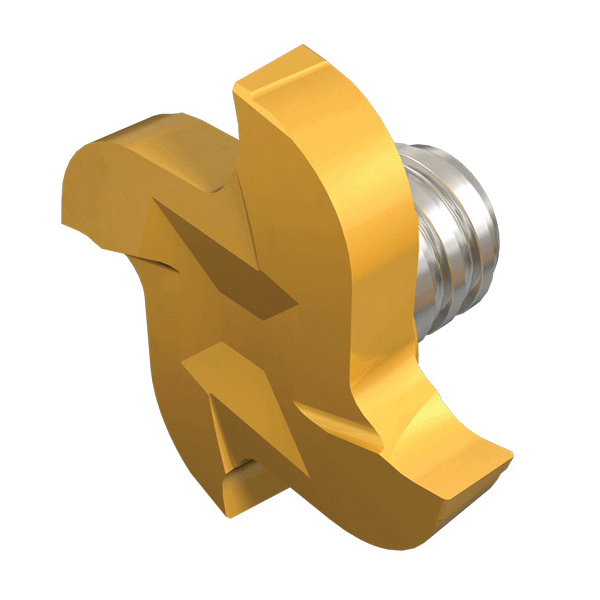

Iscar 6498769 MULTI-MASTER Interchangeable End Mill Head, ANSI Code: MM GRIT 22K-6.00-3.00, Solid Carbide, 0.118 in Corner Radius, Manufacturers Grade: IC528, 4 Flutes, Material Grade: Steel and Cast Iron

Invoice description: Mm Grit 22k-6.00-3.00 Ic 528 Groove Milling Head

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 6498769
$87.18 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER, 0.854 in Cutting Dia, 0.177 in Maximum Depth of Cut, 4 Flutes, 0.118 in Corner Radius, Manufacturers Grade: IC528, ANSI Code: MM GRIT 22K-6.00-3.00, ISO Code: MM GRIT-22K/P,28K/P, Solid Carbide, PVD-TiCN+TiN Coated, Material Grade: Steel and Cast Iron

  • Features

  • MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads
  • "P" suffix for sharp cutting edge
  • "K" suffix for T-land on cutting edge, to be used on steel and cast iron

Specifications

ApplicationMilling
ANSI CodeMM GRIT 22K-6.00-3.00
Corner Radius0.118 in
Cutting Diameter0.854 in
FinishPVD-TiCN+TiN Coated
ISO CodeMM GRIT-22K/P,28K/P
Manufacturers GradeIC528
MaterialSolid Carbide
Material GradeSteel and Cast Iron
Maximum Depth of Cut0.177 in
Number of Flutes4
SeriesMULTI-MASTER
TypeInterchangeable

Additional Information

Standards/ApprovalISO 13399
