Iscar ISCAR 6492315

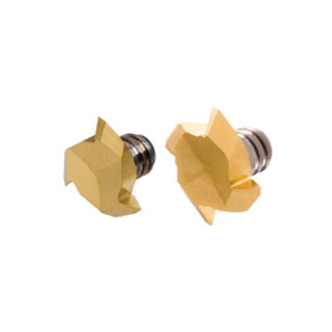

Iscar 6492315 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM TRD22-M60-30P-4T08 IC528, MM TRD-M Milling Tip Style, End Mill Milling Tip, Solid Carbide, 0.2 mm Corner Radius, Manufacturers Grade: IC528, 4 Flutes, Material Grade: M, P, S

UNSPSC: 23291601
Manufacturer PN: 6492315
$91.88 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM TRD-M Milling Tip, End Mill, 21.7 mm Cutting Dia, 4 Flutes, 0.2 mm Corner Radius, Manufacturers Grade: IC528, ANSI Code: MM TRD22-M60-30P-4T08 IC528, Solid Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P, S

  • Features

  • Interchangeable solid carbide milling heads for 60 deg partial profile thread milling

Specifications

ApplicationExternal/Internal Thread Milling
ANSI CodeMM TRD22-M60-30P-4T08 IC528
Corner Radius0.2 mm
Cutting Diameter21.7 mm
FinishPVD-TiCN+TiN Coated
Manufacturers GradeIC528
MaterialSolid Carbide
Material GradeM, P, S
Milling Tip StyleMM TRD-M
Milling Tip TypeEnd Mill
Number of Flutes4
SeriesMULTI-MASTER
TypeInterchangeable
