  5. ISCAR 6403753

Iscar ISCAR 6403753

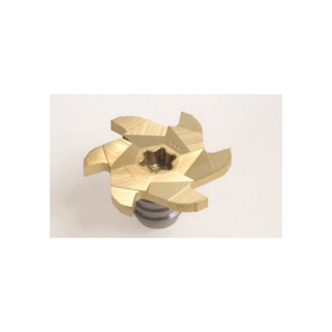

Iscar 6403753 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM GRIT 28K-2.50-0.2 IC528, MM GRIT 28 Milling Tip Style, Groove Milling Milling Tip, Solid Carbide, 0.2 mm Corner Radius, Manufacturers Grade: IC528, 6 Flutes, Material Grade: M, P, S

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 6403753
$106.44 EA
Factory Order
Estimated to ship in 14 days
QTY:

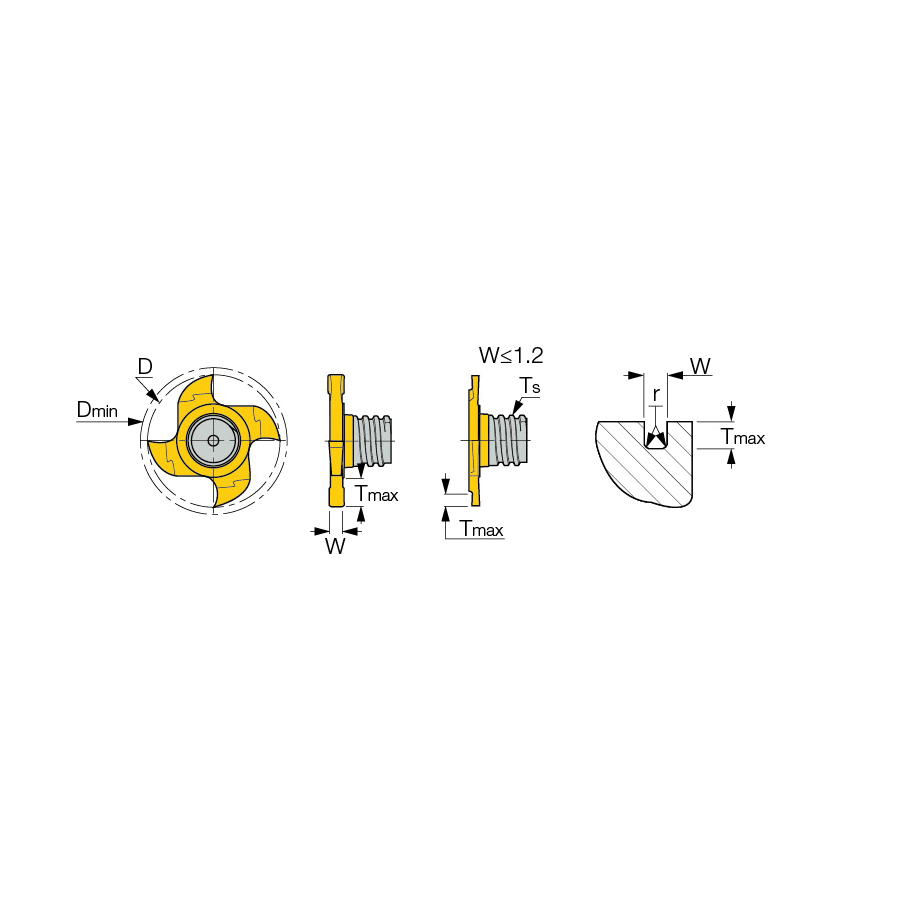

Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM GRIT 28 Milling Tip, Groove Milling, 27.7 mm Cutting Dia, 6 mm Maximum Depth of Cut, 6 Flutes, 0.2 mm Corner Radius, Manufacturers Grade: IC528, ANSI Code: MM GRIT 28K-2.50-0.2 IC528, Solid Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P, S

  • Features

  • MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads
  • T-land on cutting edge, to be used on steel and cast iron

Specifications

ApplicationT-Slotting, Internal Groove Milling and Side Slotting
ANSI CodeMM GRIT 28K-2.50-0.2 IC528
Corner Radius0.2 mm
Cutting Diameter27.7 mm
FinishPVD-TiCN+TiN Coated
Manufacturers GradeIC528
MaterialSolid Carbide
Material GradeM, P, S
Maximum Depth of Cut6 mm
Milling Tip StyleMM GRIT 28
Milling Tip TypeGroove Milling
Number of Flutes6
SeriesMULTI-MASTER
TypeInterchangeable
