Iscar ISCAR 6403521

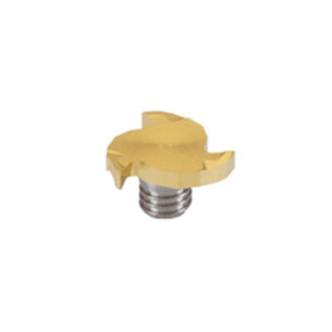

Iscar 6403521 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM GRIT 16P-1.50-0.10 IC528, MM GRIT 16 Milling Tip Style, Groove Milling Milling Tip, Solid Carbide, 0.004 in Corner Radius, Manufacturers Grade: IC528, 3 Flutes, Material Grade: M, P, S

Invoice description: Mm Grit 16p-1.50-0.10 52 8

UNSPSC: 23291601
Manufacturer PN: 6403521
$56.50 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM GRIT 16 Milling Tip, Groove Milling, 0.618 in Cutting Dia, 0.11 in Maximum Depth of Cut, 3 Flutes, 0.004 in Corner Radius, Manufacturers Grade: IC528, ANSI Code: MM GRIT 16P-1.50-0.10 IC528, Solid Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P, S

  • Features

  • MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads
  • Sharp cutting edge

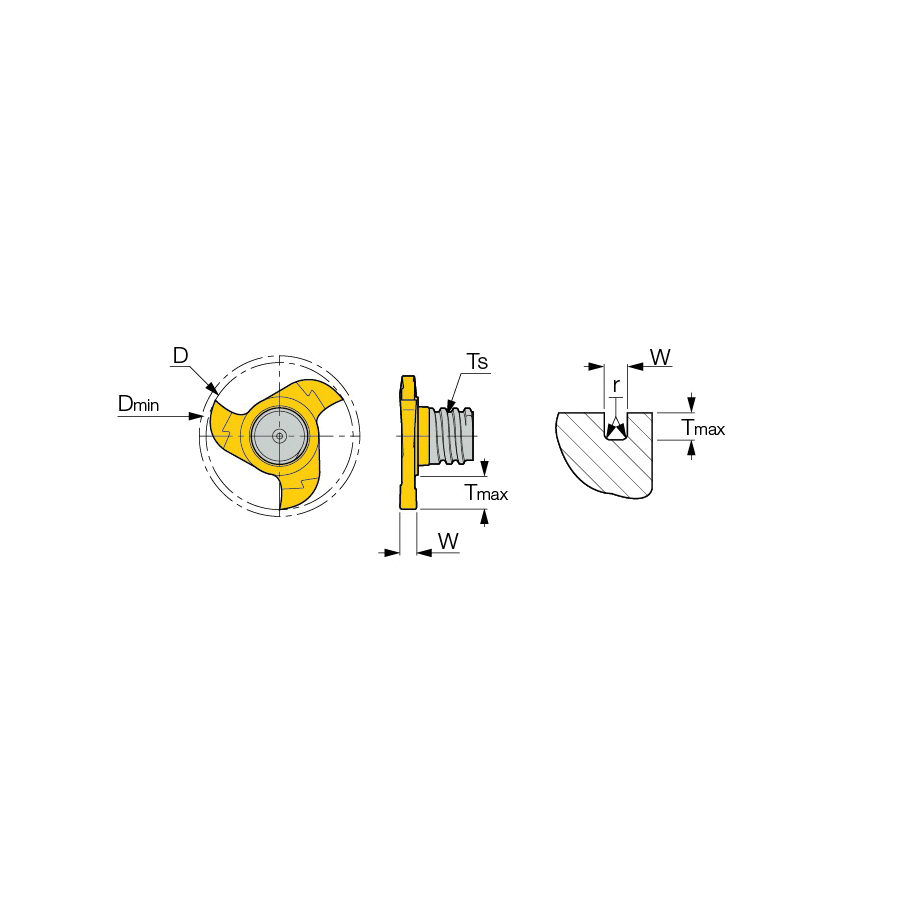

Specifications

ApplicationT-Slotting, Internal Groove Milling and Side Slotting
ANSI CodeMM GRIT 16P-1.50-0.10 IC528
Corner Radius0.004 in
Cutting Diameter0.618 in
FinishPVD-TiCN+TiN Coated
Manufacturers GradeIC528
MaterialSolid Carbide
Material GradeM, P, S
Maximum Depth of Cut0.11 in
Milling Tip StyleMM GRIT 16
Milling Tip TypeGroove Milling
Number of Flutes3
SeriesMULTI-MASTER
TypeInterchangeable

Additional Information

Country of OriginIL
