Iscar ISCAR 6403104

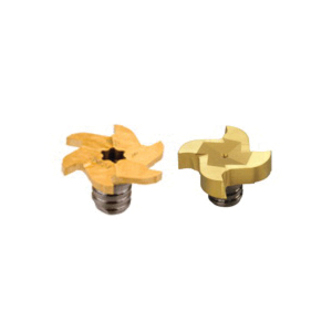

Iscar 6403104 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM GRIT 22K-1.57-0.00 IC528, MM GRIT 22 Milling Tip Style, Groove Milling Milling Tip, Solid Carbide, Manufacturers Grade: IC528, 4 Flutes, Material Grade: M, P, S

UNSPSC: 23291601
Manufacturer PN: 6403104
$66.58 EA
Factory Order
Estimated to ship in 14 days
QTY:

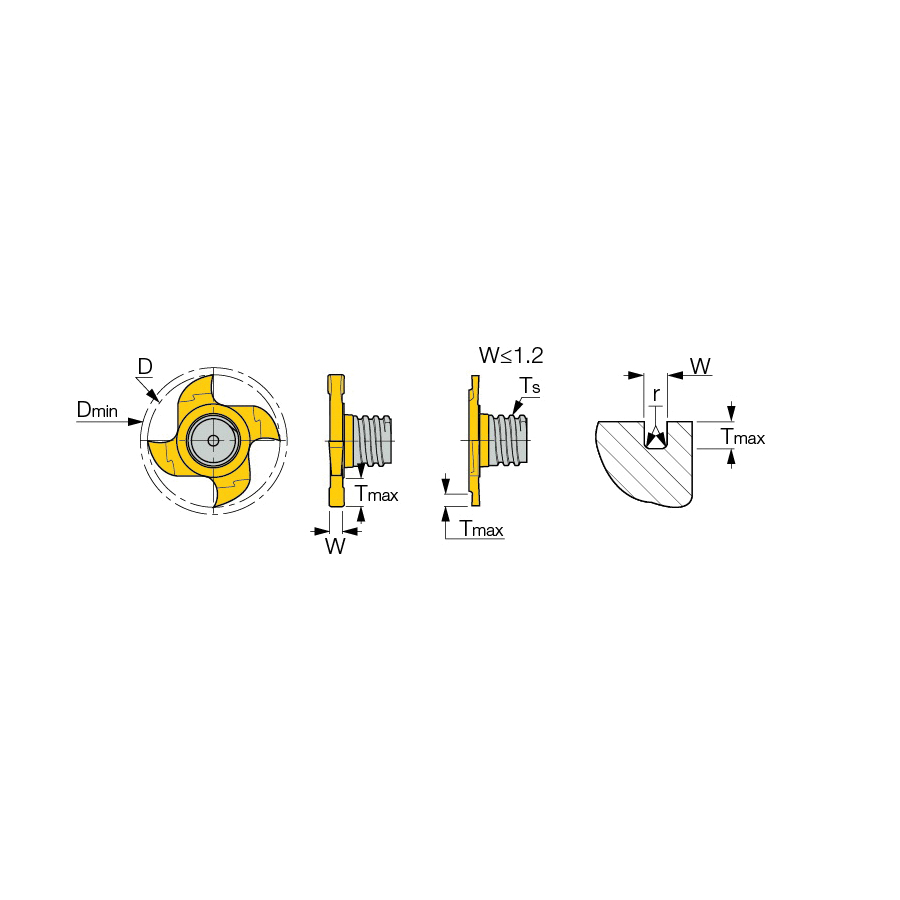

Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM GRIT 22 Milling Tip, Groove Milling, 21.7 mm Cutting Dia, 4.5 mm Maximum Depth of Cut, 4 Flutes, Manufacturers Grade: IC528, ANSI Code: MM GRIT 22K-1.57-0.00 IC528, Solid Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P, S

  • Features

  • MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads
  • T-land on cutting edge, to be used on steel and cast iron

Specifications

ApplicationT-Slotting, Internal Groove Milling and Side Slotting
ANSI CodeMM GRIT 22K-1.57-0.00 IC528
Cutting Diameter21.7 mm
FinishPVD-TiCN+TiN Coated
Manufacturers GradeIC528
MaterialSolid Carbide
Material GradeM, P, S
Maximum Depth of Cut4.5 mm
Milling Tip StyleMM GRIT 22
Milling Tip TypeGroove Milling
Number of Flutes4
SeriesMULTI-MASTER
TypeInterchangeable
