Iscar ISCAR 6403097

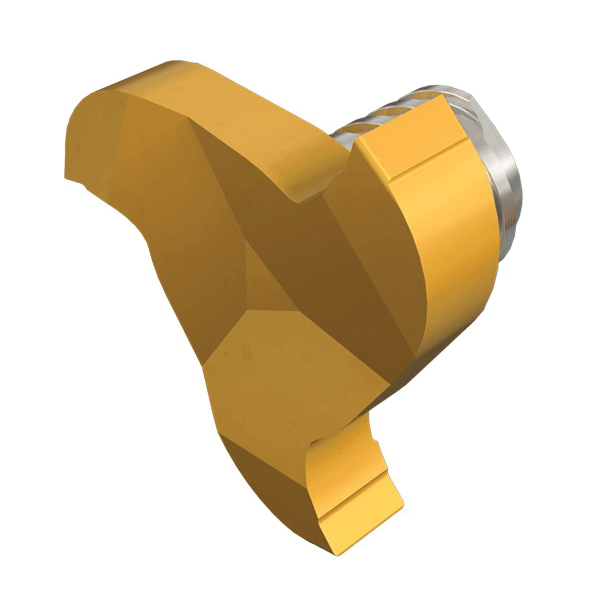

Iscar 6403097 MULTI-MASTER Interchangeable End Mill Head, ANSI Code: MM GRIT 18K-3.17-0.20, Solid Carbide, 0.2 mm Corner Radius, Manufacturers Grade: IC528, 3 Flutes

Invoice description: Mm Grit 18k-3.17-0.20 52 8

UNSPSC: 23291601
Manufacturer PN: 6403097
$56.50 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER, 17.7 mm Cutting Dia, 3.8 mm Maximum Depth of Cut, 3 Flutes, 0.2 mm Corner Radius, Manufacturers Grade: IC528, ANSI Code: MM GRIT 18K-3.17-0.20, ISO Code: MM GRIT-16K/P,18K/P, Solid Carbide

  • Features

  • MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads
  • "K" for general steel machining, "P" Positive geometry for soft and gummy materials

Specifications

ApplicationMilling
ANSI CodeMM GRIT 18K-3.17-0.20
Corner Radius0.2 mm
Cutting Diameter17.7 mm
ISO CodeMM GRIT-16K/P,18K/P
Manufacturers GradeIC528
MaterialSolid Carbide
Maximum Depth of Cut3.8 mm
Number of Flutes3
SeriesMULTI-MASTER
TypeInterchangeable

Additional Information

Standards/ApprovalISO 13399
