Iscar ISCAR 6403077

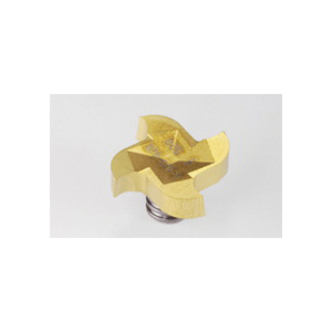

Iscar 6403077 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM GRIT 22K-5.25-0.20 IC528, MM GRIT 22 Milling Tip Style, Groove Milling Milling Tip, Solid Carbide, 0.008 in Corner Radius, Manufacturers Grade: IC528, 4 Flutes, Material Grade: M, P, S
Invoice description:
Mm Grit 22k-5.25-0.20 52 8
Factory Order
Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM GRIT 22 Milling Tip, Groove Milling, 0.854 in Cutting Dia, 0.177 in Maximum Depth of Cut, 4 Flutes, 0.008 in Corner Radius, Manufacturers Grade: IC528, ANSI Code: MM GRIT 22K-5.25-0.20 IC528, Solid Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P, S
Features
- MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads
- T-land on cutting edge, to be used on steel and cast iron
Specifications
ApplicationT-Slotting, Internal Groove Milling and Side Slotting
ANSI CodeMM GRIT 22K-5.25-0.20 IC528
Corner Radius8.0000000000000002E-3 in
Cutting Diameter0.85399999999999998 in
FinishPVD-TiCN+TiN Coated
Manufacturers GradeIC528
MaterialSolid Carbide
Material GradeM, P, S
Maximum Depth of Cut0.17699999999999999 in
Milling Tip StyleMM GRIT 22
Milling Tip TypeGroove Milling
Number of Flutes4
SeriesMULTI-MASTER
TypeInterchangeable
Additional Information
Country of OriginIS
