Iscar ISCAR 6402861

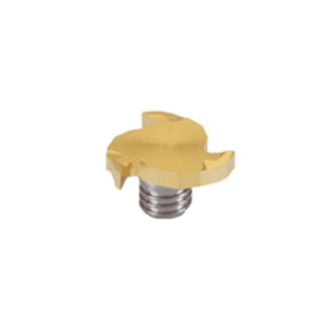

Iscar 6402861 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM GRIT 18K-2.50-0.20 IC528, MM GRIT 18 Milling Tip Style, Groove Milling Milling Tip, Solid Carbide, 0.2 mm Corner Radius, Manufacturers Grade: IC528, 3 Flutes, Material Grade: M, P, S

UNSPSC: 23291601
Manufacturer PN: 6402861
$56.50 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM GRIT 18 Milling Tip, Groove Milling, 17.7 mm Cutting Dia, 3.8 mm Maximum Depth of Cut, 3 Flutes, 0.2 mm Corner Radius, Manufacturers Grade: IC528, ANSI Code: MM GRIT 18K-2.50-0.20 IC528, Solid Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P, S

  • Features

  • MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads
  • T-land on cutting edge, to be used on cast iron

Specifications

ApplicationT-Slotting, Internal Groove Milling and Side Slotting
ANSI CodeMM GRIT 18K-2.50-0.20 IC528
Corner Radius0.2 mm
Cutting Diameter17.7 mm
FinishPVD-TiCN+TiN Coated
Manufacturers GradeIC528
MaterialSolid Carbide
Material GradeM, P, S
Maximum Depth of Cut3.8 mm
Milling Tip StyleMM GRIT 18
Milling Tip TypeGroove Milling
Number of Flutes3
SeriesMULTI-MASTER
TypeInterchangeable
