Iscar ISCAR 5697518

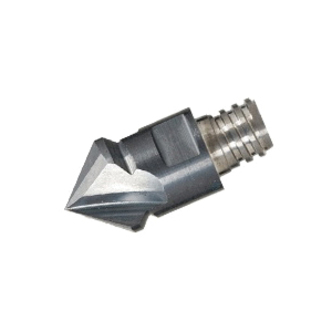

Iscar 5697518 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM EDF116-090-95-3T06 IC908, MM EDF Milling Tip Style, Chamfer Mill Milling Tip, Solid Carbide, Manufacturers Grade: IC908, 3 Flutes, Material Grade: H, K, M, P, S

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 5697518
$151.74 EA
Factory Order
Estimated to ship in 14 days
QTY:

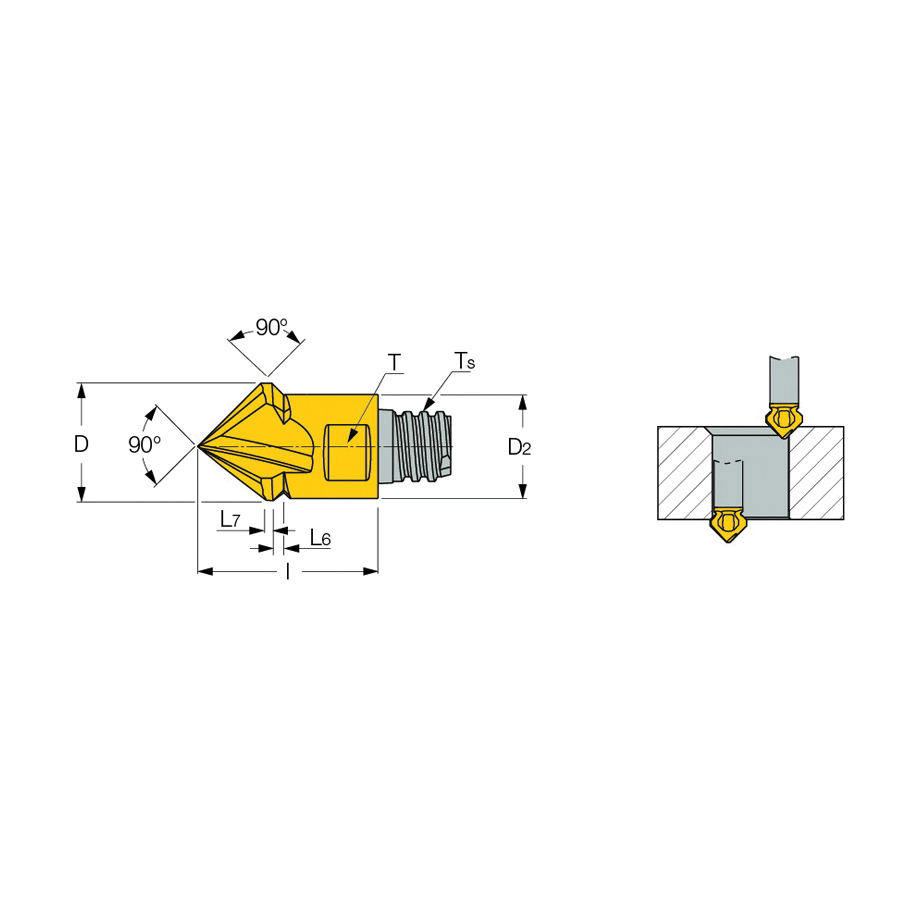

Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM EDF Milling Tip, Chamfer Mill, 11.6 mm Cutting Dia, 3 Flutes, 90 deg Included Angle, Manufacturers Grade: IC908, ANSI Code: MM EDF116-090-95-3T06 IC908, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationCountersinking, Chamfering and Bottom Deburring
ANSI CodeMM EDF116-090-95-3T06 IC908
Cutting Diameter11.6 mm
FinishPVD-TiAlN Coated
Included Angle90 deg
Manufacturers GradeIC908
MaterialSolid Carbide
Material GradeH, K, M, P, S
Milling Tip StyleMM EDF
Milling Tip TypeChamfer Mill
Number of Flutes3
SeriesMULTI-MASTER
TypeInterchangeable
