Iscar ISCAR 5697508

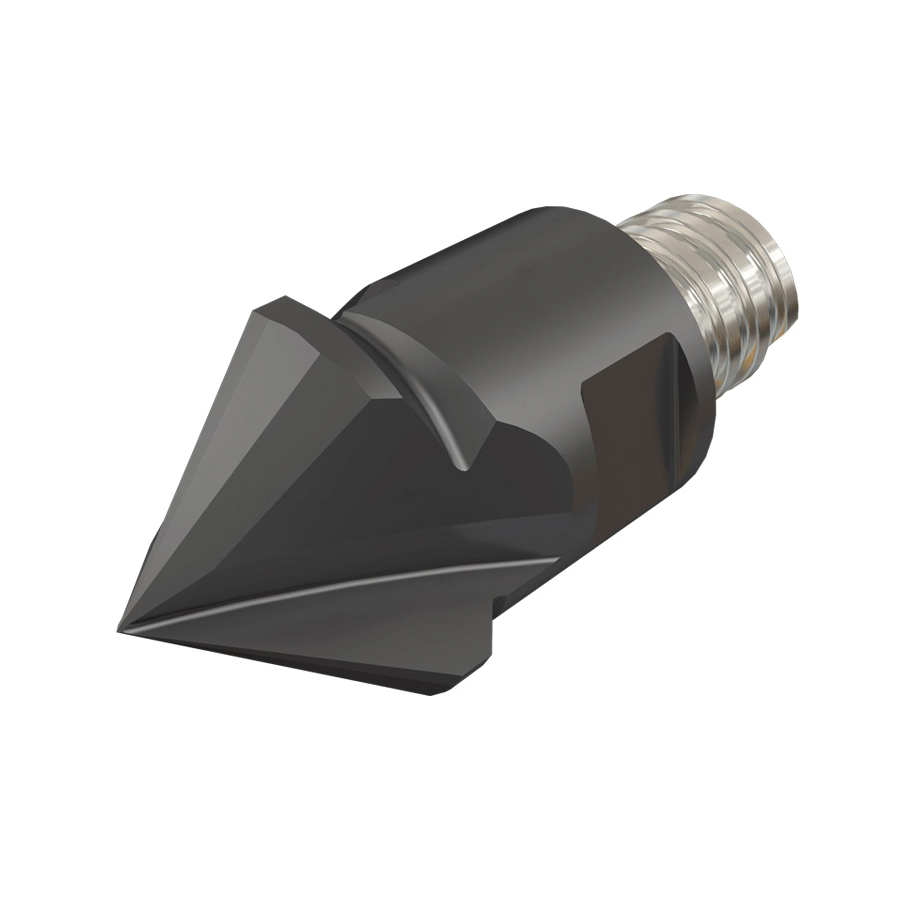

Iscar 5697508 MULTI-MASTER Interchangeable End Mill Head, ANSI Code: MM EDF094-090-76-3T05, Solid Carbide, Manufacturers Grade: IC908, 3 Flutes

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 5697508
$123.06 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER, 0.37 in Cutting Dia, 0.492 in Maximum Depth of Cut, 3 Flutes, 90 deg Included Angle, Manufacturers Grade: IC908, ANSI Code: MM EDF094-090-76-3T05, ISO Code: MM EDF, Solid Carbide, PVD-TiAlN Coated

  • Features

  • Interchangeable 3-flute solid carbide heads for upper and bottom chamfering

Specifications

ApplicationMilling
ANSI CodeMM EDF094-090-76-3T05
Cutting Diameter0.37 in
FinishPVD-TiAlN Coated
Included Angle90 deg
ISO CodeMM EDF
Manufacturers GradeIC908
MaterialSolid Carbide
Maximum Depth of Cut0.492 in
Number of Flutes3
SeriesMULTI-MASTER
TypeInterchangeable
