Iscar ISCAR 5667819

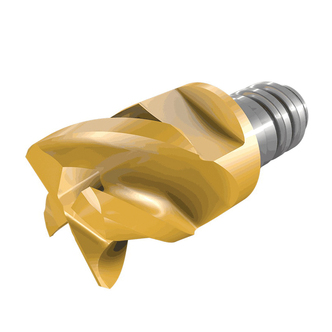

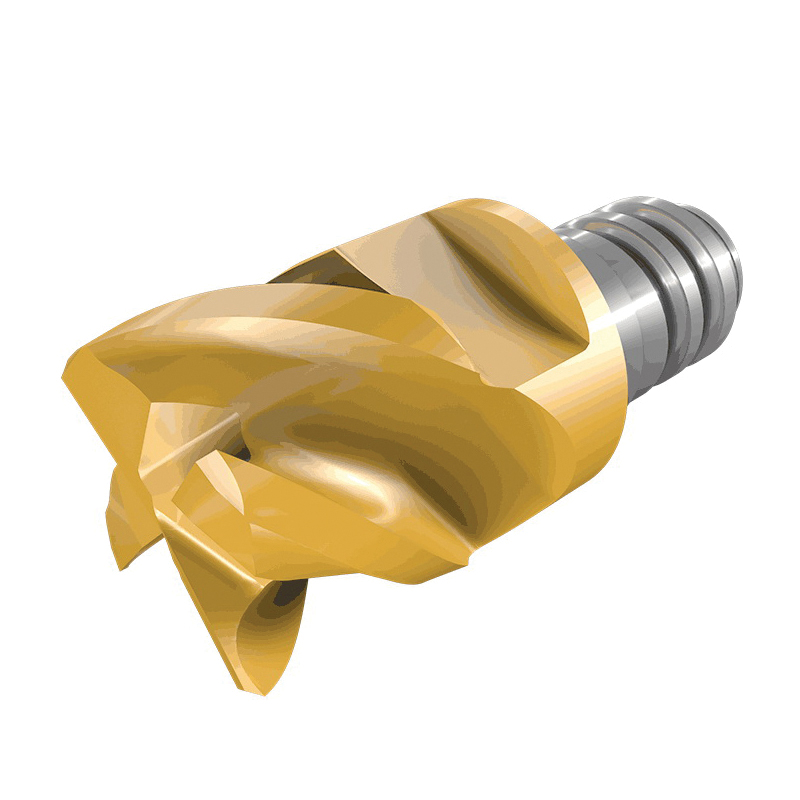

Iscar 5667819 MULTI-MASTER Interchangeable End Mill Head, ANSI Code: MM EC.750H62C24-4T12CF, Solid Carbide, Manufacturers Grade: IC908, 4 Flutes

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 5667819
$301.08 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER, 3/4 in Cutting Dia, 0.63 in Maximum Depth of Cut, 4 Flutes, Manufacturers Grade: IC908, ANSI Code: MM EC.750H62C24-4T12CF, ISO Code: MM EC-H-4-CF, Solid Carbide, PVD-TiAlN Coated

  • Features

  • 4-flute with different helix (46 to 48 deg) and variable pitch for roughing and finishing operations
  • High material removal rates chatter free, for machining alloyed steel

Specifications

ApplicationMilling
ANSI CodeMM EC.750H62C24-4T12CF
Cutting Diameter3/4 in
FinishPVD-TiAlN Coated
ISO CodeMM EC-H-4-CF
Manufacturers GradeIC908
MaterialSolid Carbide
Maximum Depth of Cut0.63 in
Number of Flutes4
SeriesMULTI-MASTER
TypeInterchangeable
