Iscar ISCAR 5623388

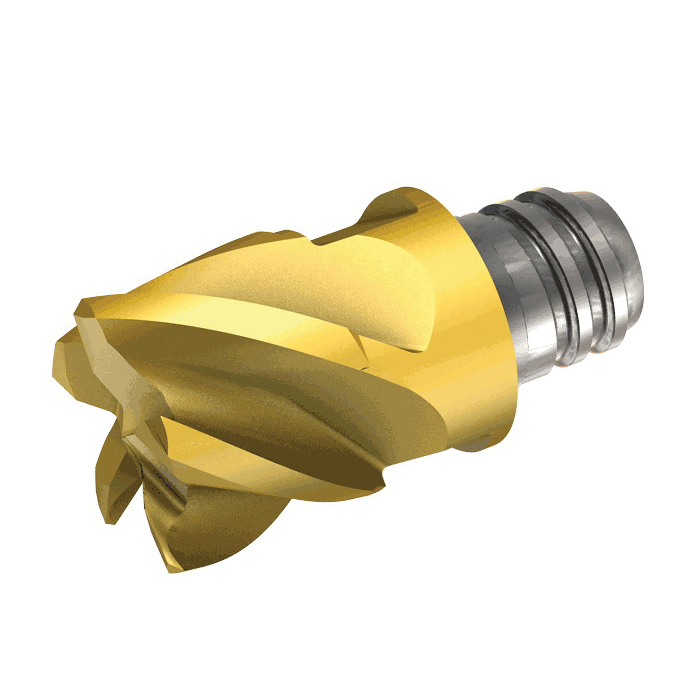

Iscar 5623388 MULTI-MASTER Interchangeable End Mill Head, ANSI Code: MM EC.500H37C20-5T08CF, Solid Carbide, Manufacturers Grade: IC308, 5 Flutes

Invoice description: Mm Ec.500h37c20-5t08cf30 8 Klune Pricing

UNSPSC: 23291601
Manufacturer PN: 5623388
$182.80 EA
Factory Order
Estimated to ship in 7 days
QTY:


Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER, 1/2 in Cutting Dia, 0.374 in Maximum Depth of Cut, 5 Flutes, Manufacturers Grade: IC308, ANSI Code: MM EC.500H37C20-5T08CF, ISO Code: MM EC-H-5-CF, Solid Carbide, PVD-TiAlN Coated

  • Features

  • 5-flute with different helix (35 to 41 deg) and variable pitch for roughing and finishing operations
  • High material removal rates chatter free, for machining high temperature alloys like titanium and Inconel

Specifications

ApplicationMilling
ANSI CodeMM EC.500H37C20-5T08CF
Cutting Diameter1/2 in
FinishPVD-TiAlN Coated
ISO CodeMM EC-H-5-CF
Manufacturers GradeIC308
MaterialSolid Carbide
Maximum Depth of Cut0.374 in
Number of Flutes5
SeriesMULTI-MASTER
TypeInterchangeable

Additional Information

Standards/ApprovalISO 13399
