Iscar ISCAR 5623036

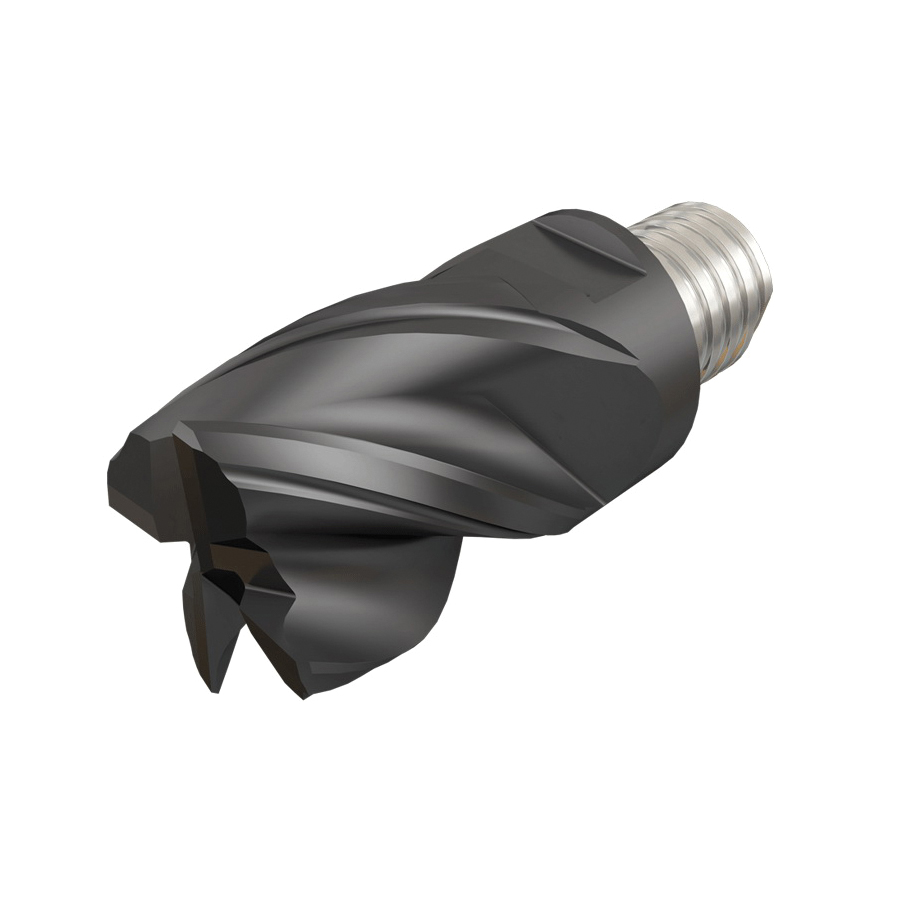

Iscar 5623036 MULTI-MASTER CHATTERFREE Interchangeable End Mill Head, ANSI Code: MM EC750E62R31CF-4T12, Solid Carbide, 0.031 in Corner Radius, Manufacturers Grade: IC908, 4 Flutes

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 5623036
$285.56 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER CHATTERFREE, 3/4 in Cutting Dia, 0.629 in Maximum Depth of Cut, 4 Flutes, 0.031 in Corner Radius, Manufacturers Grade: IC908, ANSI Code: MM EC750E62R31CF-4T12, ISO Code: MM EC-CF, Solid Carbide, PVD-TiAlN Coated

  • Features

  • MULTI-MASTER interchangeable solid carbide heads with 38deg helix and variable pitch for roughing and finishing operations
  • High material removal rates chatter free
  • Used for machining alloyed and stainless steel and exotic materials

Specifications

ApplicationMilling
ANSI CodeMM EC750E62R31CF-4T12
Corner Radius0.031 in
Cutting Diameter3/4 in
FinishPVD-TiAlN Coated
ISO CodeMM EC-CF
Manufacturers GradeIC908
MaterialSolid Carbide
Maximum Depth of Cut0.629 in
Number of Flutes4
SeriesMULTI-MASTER CHATTERFREE
TypeInterchangeable
