Iscar ISCAR 5623034

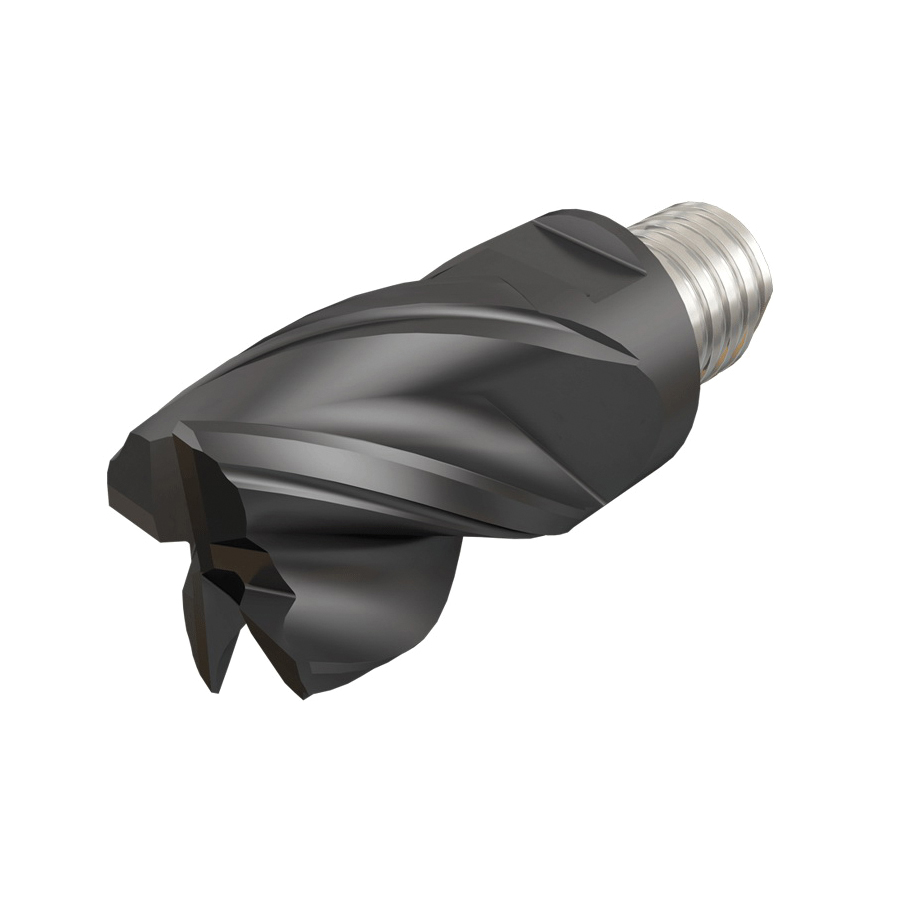

Iscar 5623034 MULTI-MASTER CHATTERFREE Interchangeable End Mill Head, ANSI Code: MM EC500E37R31CF-4T08, Solid Carbide, 0.031 in Corner Radius, Manufacturers Grade: IC908, 4 Flutes

Invoice description: Mm Ec500e37r31cf-4t08 90 8 Klune Pricing

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 5623034
$167.28 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER CHATTERFREE, 1/2 in Cutting Dia, 0.374 in Maximum Depth of Cut, 4 Flutes, 0.031 in Corner Radius, Manufacturers Grade: IC908, ANSI Code: MM EC500E37R31CF-4T08, ISO Code: MM EC-CF, Solid Carbide, PVD-TiAlN Coated

  • Features

  • MULTI-MASTER interchangeable solid carbide heads with 38deg helix and variable pitch for roughing and finishing operations
  • High material removal rates chatter free
  • Used for machining alloyed and stainless steel and exotic materials

Specifications

ApplicationMilling
ANSI CodeMM EC500E37R31CF-4T08
Corner Radius0.031 in
Cutting Diameter1/2 in
FinishPVD-TiAlN Coated
ISO CodeMM EC-CF
Manufacturers GradeIC908
MaterialSolid Carbide
Maximum Depth of Cut0.374 in
Number of Flutes4
SeriesMULTI-MASTER CHATTERFREE
TypeInterchangeable

Additional Information

Standards/ApprovalISO 13399
