Iscar ISCAR 5623033

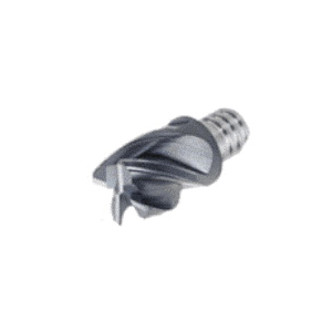

Iscar 5623033 MULTI-MASTER CHATTERFREE Interchangeable Milling Head, ANSI Code: MM EC375E27R15CF-4T06 IC908, MM EC-CF Milling Tip Style, End Mill Milling Tip, Solid Carbide, 0.015 in Corner Radius, Manufacturers Grade: IC908, 4 Flutes

Invoice description: Mm Ec375e27r15cf-4t06 90 8 Multi-master 3/8" .015

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 5623033
$131.43 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER CHATTERFREE, MM EC-CF Milling Tip, End Mill, 3/8 in Cutting Dia, 0.299 in Maximum Depth of Cut, 4 Flutes, 0.015 in Corner Radius, Manufacturers Grade: IC908, ANSI Code: MM EC375E27R15CF-4T06 IC908, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

  • Features

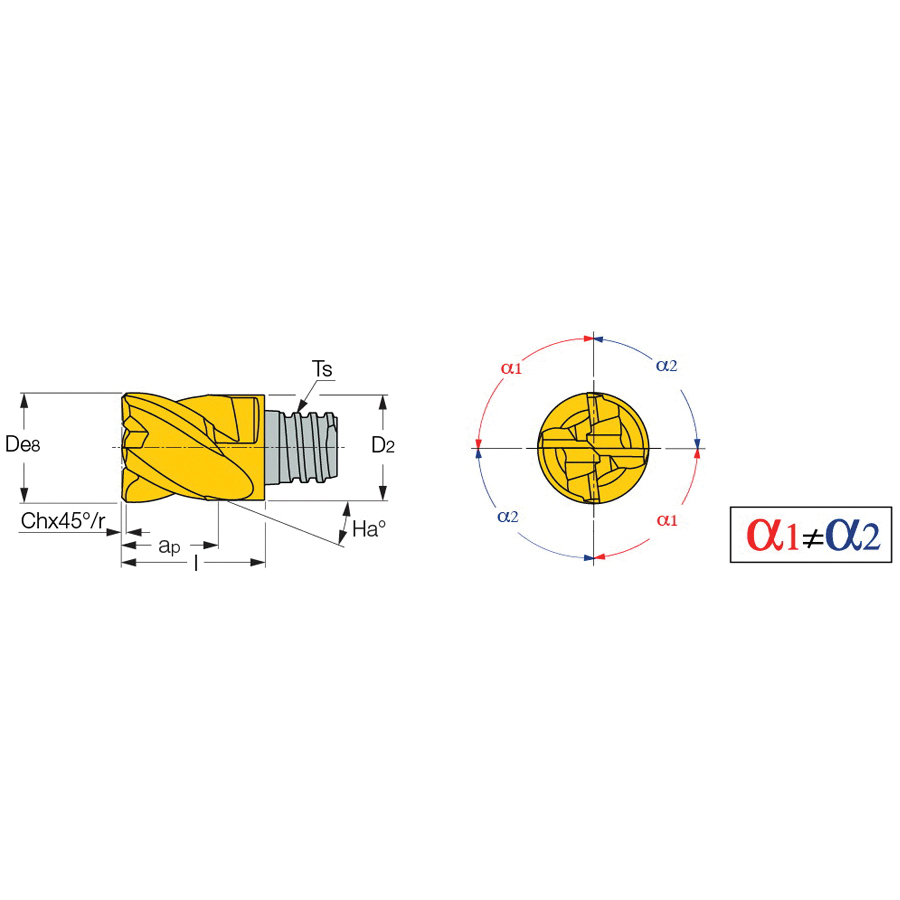

  • MULTI-MASTER interchangeable solid carbide heads with 38 deg helix and variable pitch for roughing and finishing operations
  • High material removal rates chatter free
  • Used for machining alloyed and stainless steel and exotic materials

Specifications

ApplicationShouldering, Slotting, Ramp Down, Helical Interpolation, Drill Mill, Plunging and Recessing
ANSI CodeMM EC375E27R15CF-4T06 IC908
Corner Radius0.015 in
Cutting Diameter3/8 in
FinishPVD-TiAlN Coated
Manufacturers GradeIC908
MaterialSolid Carbide
Material GradeH, K, M, P, S
Maximum Depth of Cut0.299 in
Milling Tip StyleMM EC-CF
Milling Tip TypeEnd Mill
Number of Flutes4
SeriesMULTI-MASTER CHATTERFREE
TypeInterchangeable

Additional Information

Country of OriginIS
