Iscar ISCAR 5622894

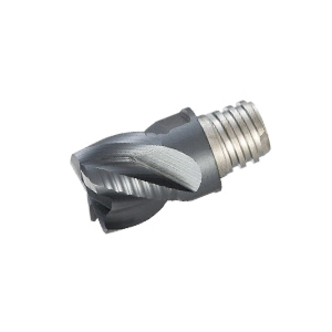

Iscar 5622894 MULTI-MASTER CHATTERFREE Interchangeable Milling Head, ANSI Code: MM EFS120E09-4T08 CF IC908, MM EFS-CF Milling Tip Style, End Mill Milling Tip, Solid Carbide, Manufacturers Grade: IC908, 4 Flutes, Material Grade: H, K, M, P, S

UNSPSC: 23291601
Manufacturer PN: 5622894
$224.62 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER CHATTERFREE, MM EFS-CF Milling Tip, End Mill, 12 mm Cutting Dia, 9 mm Maximum Depth of Cut, 4 Flutes, Manufacturers Grade: IC908, ANSI Code: MM EFS120E09-4T08 CF IC908, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

  • Features

  • 4 flute solid carbide heads with 38 deg helix and variable pitch for chatter free roughing and finishing applications

Specifications

ApplicationShouldering, Slotting, Ramp Down, Helical Interpolation, Drill Mill, Plunging and Recessing
ANSI CodeMM EFS120E09-4T08 CF IC908
Cutting Diameter12 mm
FinishPVD-TiAlN Coated
Manufacturers GradeIC908
MaterialSolid Carbide
Material GradeH, K, M, P, S
Maximum Depth of Cut9 mm
Milling Tip StyleMM EFS-CF
Milling Tip TypeEnd Mill
Number of Flutes4
SeriesMULTI-MASTER CHATTERFREE
TypeInterchangeable
