Iscar ISCAR 5622602

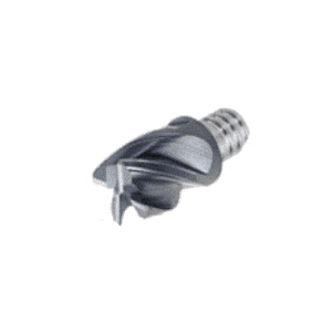

Iscar 5622602 MULTI-MASTER CHATTERFREE Interchangeable Milling Head, ANSI Code: MM EC375E27C16CF-4T06 IC908, MM EC-CF Milling Tip Style, End Mill Milling Tip, Solid Carbide, Manufacturers Grade: IC908, 4 Flutes, Material Grade: H, K, M, P, S
Invoice description:
Mm Ec375e27c16cf-4t06 90 8
Factory Order
Iscar Milling Head, Interchangeable, Series: MULTI-MASTER CHATTERFREE, MM EC-CF Milling Tip, End Mill, 3/8 in Cutting Dia, 0.299 in Maximum Depth of Cut, 4 Flutes, Manufacturers Grade: IC908, ANSI Code: MM EC375E27C16CF-4T06 IC908, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- MULTI-MASTER interchangeable solid carbide heads with 38 deg helix and variable pitch for roughing and finishing operations
- High material removal rates chatter free
- Used for machining alloyed and stainless steel and exotic materials
Specifications
ApplicationShouldering, Slotting, Ramp Down, Helical Interpolation, Drill Mill, Plunging and Recessing
ANSI CodeMM EC375E27C16CF-4T06 IC908
Cutting Diameter3/8 in
FinishPVD-TiAlN Coated
Manufacturers GradeIC908
MaterialSolid Carbide
Material GradeH, K, M, P, S
Maximum Depth of Cut0.299 in
Milling Tip StyleMM EC-CF
Milling Tip TypeEnd Mill
Number of Flutes4
SeriesMULTI-MASTER CHATTERFREE
TypeInterchangeable
Additional Information
Country of OriginIL
