Iscar ISCAR 5622373

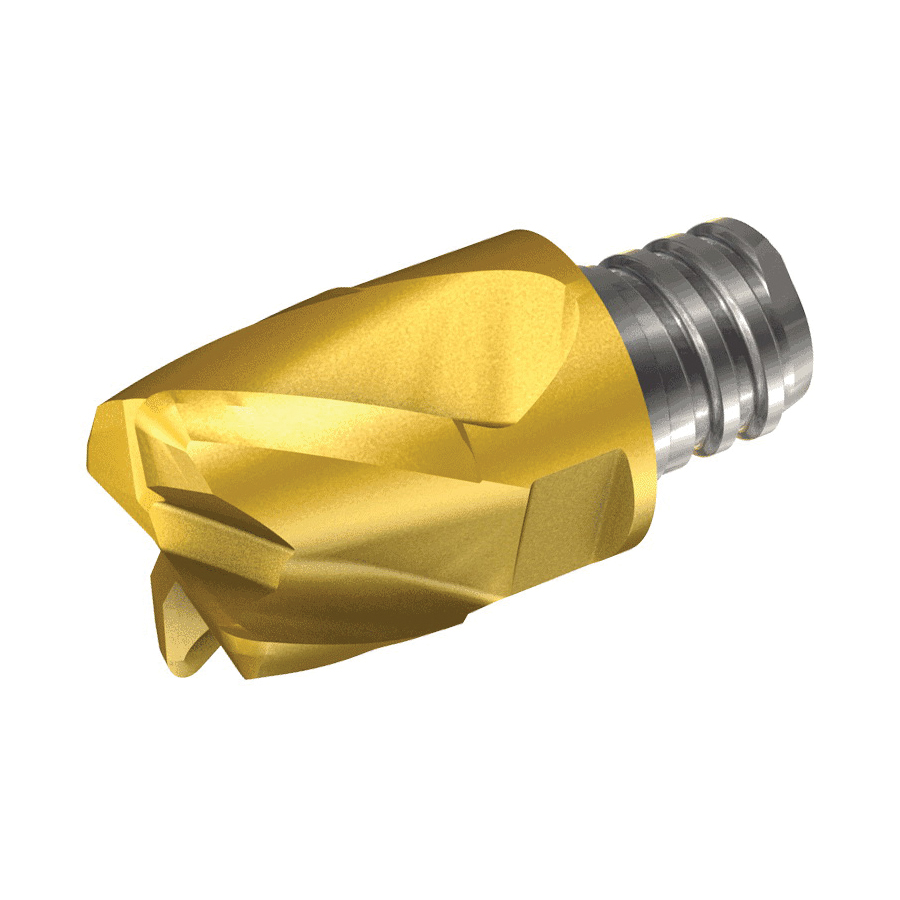

Iscar 5622373 MULTI-MASTER Interchangeable End Mill Head, ANSI Code: MM EC.750A62R060-4T12, Solid Carbide, Manufacturers Grade: IC908, 4 Flutes

Invoice description: Mm Ec.750a62r060-4t12 90 8 Interchangeable 4-fl E

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 5622373
$232.99 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER, 3/4 in Cutting Dia, 1 in Maximum Depth of Cut, 4 Flutes, Manufacturers Grade: IC908, ANSI Code: MM EC.750A62R060-4T12, ISO Code: MM EC-4, Solid Carbide

  • Features

  • Interchangeable 4-flute solid carbide end mill heads with 30 deg and 45 deg helix and various corner radii

Specifications

ApplicationGroove Turning and Parting
ANSI CodeMM EC.750A62R060-4T12
Cutting Diameter3/4 in
ISO CodeMM EC-4
Manufacturers GradeIC908
MaterialSolid Carbide
Maximum Depth of Cut1 in
Number of Flutes4
SeriesMULTI-MASTER
TypeInterchangeable

Additional Information

Standards/ApprovalISO 13399
