Iscar ISCAR 5622253

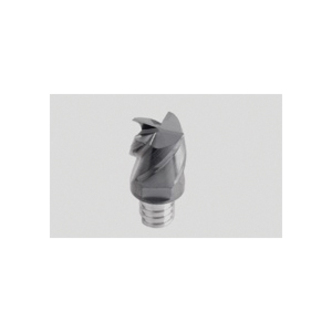

Iscar 5622253 MULTI-MASTER Interchangeable End Mill Head, ANSI Code: MM EC.750B62R031-4T12, Solid Carbide, 0.031 in Corner Radius, Manufacturers Grade: IC908, 4 Flutes

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 5622253
$225.82 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER, 3/4 in Cutting Dia, 0.62 in Maximum Depth of Cut, 4 Flutes, 0.031 in Corner Radius, Manufacturers Grade: IC908, ANSI Code: MM EC.750B62R031-4T12, ISO Code: MM EC-4, Solid Carbide, PVD-TiAlN Coated

  • Features

  • Interchangeable 4-flute solid carbide end mill heads with 30 deg and 45 deg helix and various corner radii

Specifications

ApplicationMilling and Slotting
ANSI CodeMM EC.750B62R031-4T12
Corner Radius0.031 in
Cutting Diameter3/4 in
FinishPVD-TiAlN Coated
ISO CodeMM EC-4
Manufacturers GradeIC908
MaterialSolid Carbide
Maximum Depth of Cut0.62 in
Number of Flutes4
SeriesMULTI-MASTER
TypeInterchangeable
