Iscar ISCAR 5622178

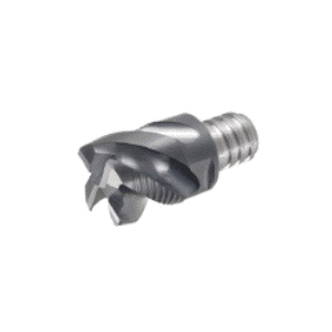

Iscar 5622178 MULTI-MASTER FINISHRED Interchangeable Milling Head, ANSI Code: MM EFS.375B27-4T06 IC908, MM EFS Milling Tip Style, End Mill Milling Tip, Solid Carbide, Manufacturers Grade: IC908, 4 Flutes, Material Grade: H, K, M, P, S

Invoice description: Mm Efs.375b27-4t06 Ic908

UNSPSC: 23291601
Manufacturer PN: 5622178
$142.19 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER FINISHRED, MM EFS Milling Tip, End Mill, 3/8 in Cutting Dia, 0.275 in Maximum Depth of Cut, 4 Flutes, Manufacturers Grade: IC908, ANSI Code: MM EFS.375B27-4T06 IC908, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationRoughing, Finishing, Shouldering, Slotting, Ramp Down, Helical Interpolation, Drill Mill, Plunging and Recessing
ANSI CodeMM EFS.375B27-4T06 IC908
Cutting Diameter3/8 in
FinishPVD-TiAlN Coated
Manufacturers GradeIC908
MaterialSolid Carbide
Material GradeH, K, M, P, S
Maximum Depth of Cut0.275 in
Milling Tip StyleMM EFS
Milling Tip TypeEnd Mill
Number of Flutes4
SeriesMULTI-MASTER FINISHRED
TypeInterchangeable

Additional Information

Country of OriginIL
