Iscar ISCAR 5622036

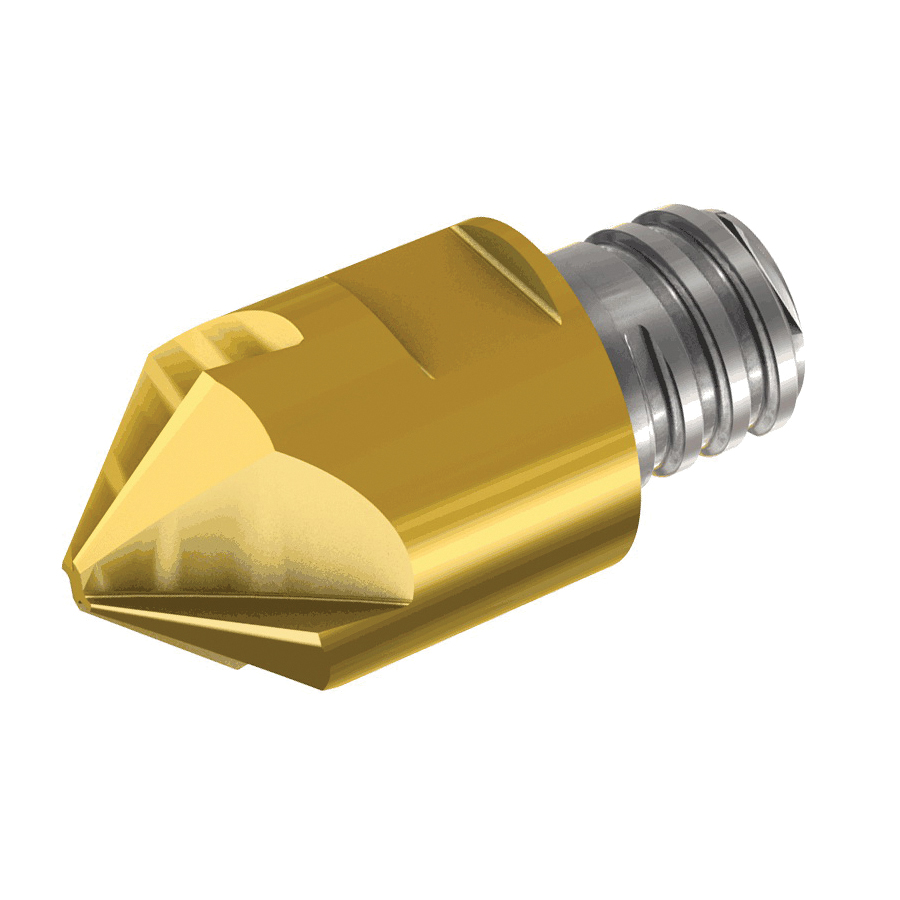

Iscar 5622036 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM ECF45-160-6T10 IC908, MM ECF Milling Tip Style, Chamfer Mill Milling Tip, Solid Carbide, Manufacturers Grade: IC908, 6 Flutes, Material Grade: H, K, M, P, S

Invoice description: Mm Ecf45-160-6t10 Ic908

UNSPSC: 23291601
Manufacturer PN: 5622036
$217.46 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM ECF Milling Tip, Chamfer Mill, 16 mm Cutting Dia, 6.5 mm Maximum Depth of Cut, 6 Flutes, Manufacturers Grade: IC908, ANSI Code: MM ECF45-160-6T10 IC908, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationCountersinking, Slanted Shouldering and Chamfering
ANSI CodeMM ECF45-160-6T10 IC908
Cutting Diameter16 mm
FinishPVD-TiAlN Coated
Manufacturers GradeIC908
MaterialSolid Carbide
Material GradeH, K, M, P, S
Maximum Depth of Cut6.5 mm
Milling Tip StyleMM ECF
Milling Tip TypeChamfer Mill
Number of Flutes6
SeriesMULTI-MASTER
TypeInterchangeable

Additional Information

Country of OriginIL
