Iscar ISCAR 5621482

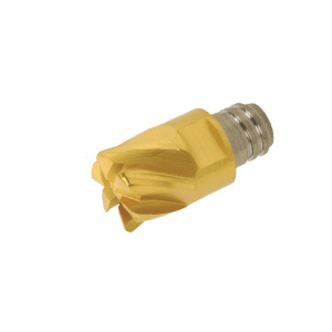

Iscar 5621482 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM EC.500A37R030-6T08 IC908, MM EC-6 Milling Tip Style, End Mill Milling Tip, Solid Carbide, 0.03 in Corner Radius, Manufacturers Grade: IC908, 6 Flutes, Material Grade: H, K, M, P, S
Invoice description:
Mm Ec.500a37r030-6t08 90 8
Factory Order
Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM EC-6 Milling Tip, End Mill, 1/2 in Cutting Dia, 0.374 in Maximum Depth of Cut, 6 Flutes, 0.03 in Corner Radius, Manufacturers Grade: IC908, ANSI Code: MM EC.500A37R030-6T08 IC908, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- Interchangeable 6 flute solid carbide end mill heads with 45 deg helix and various corner radii
Specifications
ApplicationShouldering, Slotting and Ramp Down
ANSI CodeMM EC.500A37R030-6T08 IC908
Corner Radius0.03 in
Cutting Diameter1/2 in
FinishPVD-TiAlN Coated
Manufacturers GradeIC908
MaterialSolid Carbide
Material GradeH, K, M, P, S
Maximum Depth of Cut0.374 in
Milling Tip StyleMM EC-6
Milling Tip TypeEnd Mill
Number of Flutes6
SeriesMULTI-MASTER
TypeInterchangeable
Additional Information
Country of OriginIS
Catalog
