Iscar ISCAR 5621395

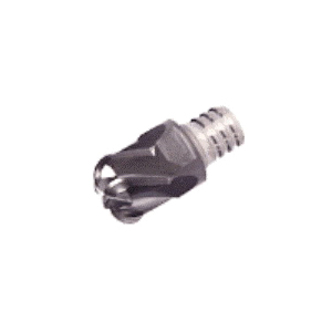

Iscar 5621395 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM ETR.312A16R078-6T05 90 IC908, MM ETR Milling Tip Style, Ball Nose Milling Tip, Solid Carbide, 0.078 in Corner Radius, Manufacturers Grade: IC908, 6 Flutes

Invoice description: Mm Etr.312a16r078-6t05 9

UNSPSC: 23291601
Manufacturer PN: 5621395
$114.11 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM ETR Milling Tip, Ball Nose, 0.312 in Cutting Dia, 0.16 in Maximum Depth of Cut, 6 Flutes, 0.078 in Corner Radius, Manufacturers Grade: IC908, ANSI Code: MM ETR.312A16R078-6T05 90 IC908, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationProfiling, Ramp Down, Helical Interpolation and Slotting
ANSI CodeMM ETR.312A16R078-6T05 90 IC908
Corner Radius0.078 in
Cutting Diameter0.312 in
FinishPVD-TiAlN Coated
Manufacturers GradeIC908
MaterialSolid Carbide
Material GradeH, K, M, P, S
Maximum Depth of Cut0.16 in
Milling Tip StyleMM ETR
Milling Tip TypeBall Nose
Number of Flutes6
SeriesMULTI-MASTER
TypeInterchangeable

Additional Information

Country of OriginIL
