Iscar ISCAR 5621362

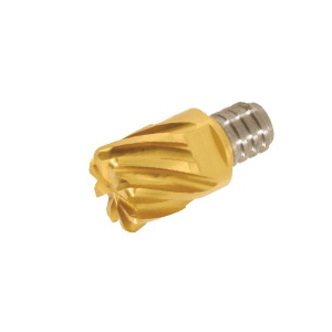

Iscar 5621362 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM EC.625A47R030-8T10 IC908, MM EC-8/10 Milling Tip Style, End Mill Milling Tip, Solid Carbide, 0.03 in Corner Radius, Manufacturers Grade: IC908, 8 Flutes, Material Grade: H, K, M, P, S

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 5621362
$249.72 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM EC-8/10 Milling Tip, End Mill, 5/8 in Cutting Dia, 0.47 in Maximum Depth of Cut, 8 Flutes, 0.03 in Corner Radius, Manufacturers Grade: IC908, ANSI Code: MM EC.625A47R030-8T10 IC908, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

  • Features

  • Interchangeable 8 flute 30 deg helix solid carbide end mill heads with various corner radii

Specifications

ApplicationShouldering, Slotting and Ramp Down
ANSI CodeMM EC.625A47R030-8T10 IC908
Corner Radius0.03 in
Cutting Diameter5/8 in
FinishPVD-TiAlN Coated
Manufacturers GradeIC908
MaterialSolid Carbide
Material GradeH, K, M, P, S
Maximum Depth of Cut0.47 in
Milling Tip StyleMM EC-8/10
Milling Tip TypeEnd Mill
Number of Flutes8
SeriesMULTI-MASTER
TypeInterchangeable
