Iscar ISCAR 5621327

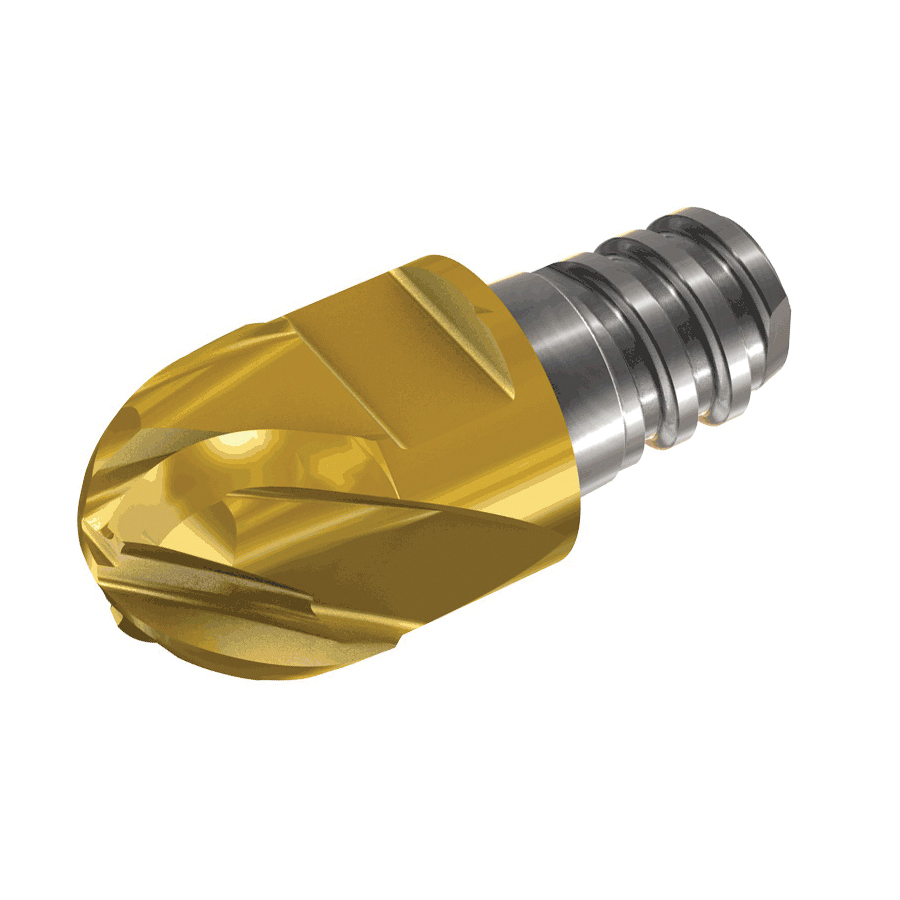

Iscar 5621327 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM EB.500A37-4T08 IC908, MM EB Milling Tip Style, Ball Nose Milling Tip, Solid Carbide, 0.249 in Corner Radius, Manufacturers Grade: IC908, 4 Flutes, Material Grade: H, K, M, P, S

Pack Size: 2
UNSPSC: 23291601
Manufacturer PN: 5621327
$140.98 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM EB Milling Tip, Ball Nose, 1/2 in Cutting Dia, 0.374 in Maximum Depth of Cut, 4 Flutes, 0.249 in Corner Radius, Manufacturers Grade: IC908, ANSI Code: MM EB.500A37-4T08 IC908, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

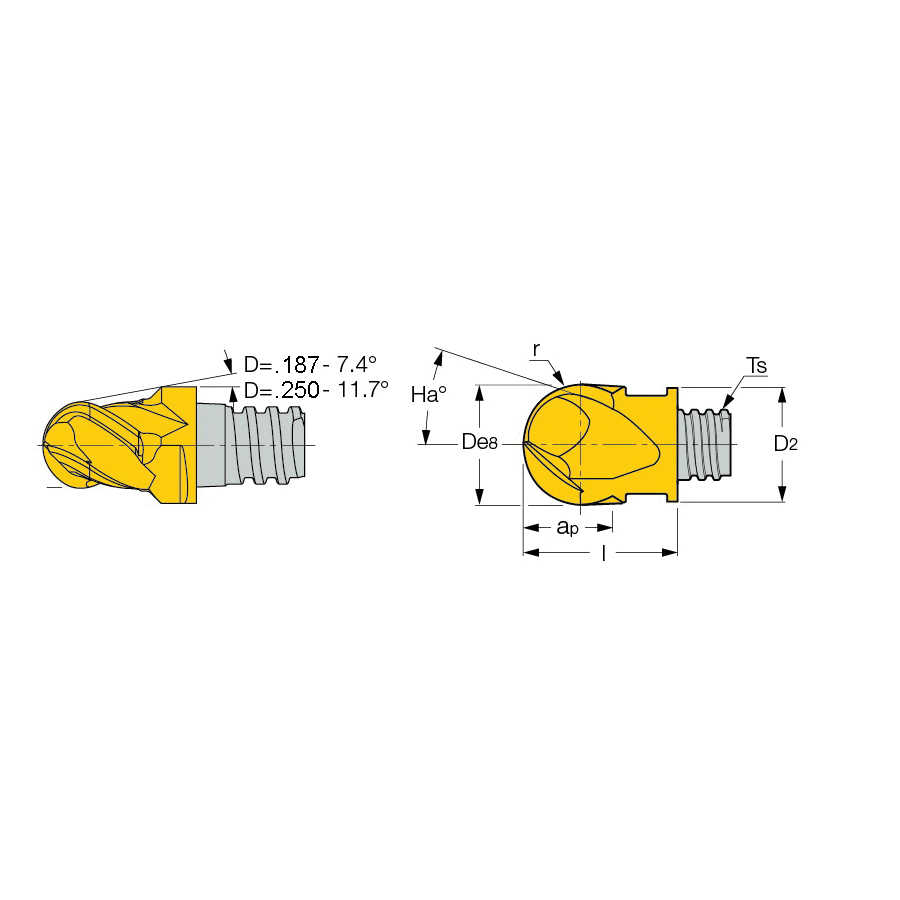

Specifications

ApplicationProfiling Applications
ANSI CodeMM EB.500A37-4T08 IC908
Corner Radius0.249 in
Cutting Diameter1/2 in
FinishPVD-TiAlN Coated
Manufacturers GradeIC908
MaterialSolid Carbide
Material GradeH, K, M, P, S
Maximum Depth of Cut0.374 in
Milling Tip StyleMM EB
Milling Tip TypeBall Nose
Number of Flutes4
SeriesMULTI-MASTER
TypeInterchangeable
