Iscar ISCAR 5621319

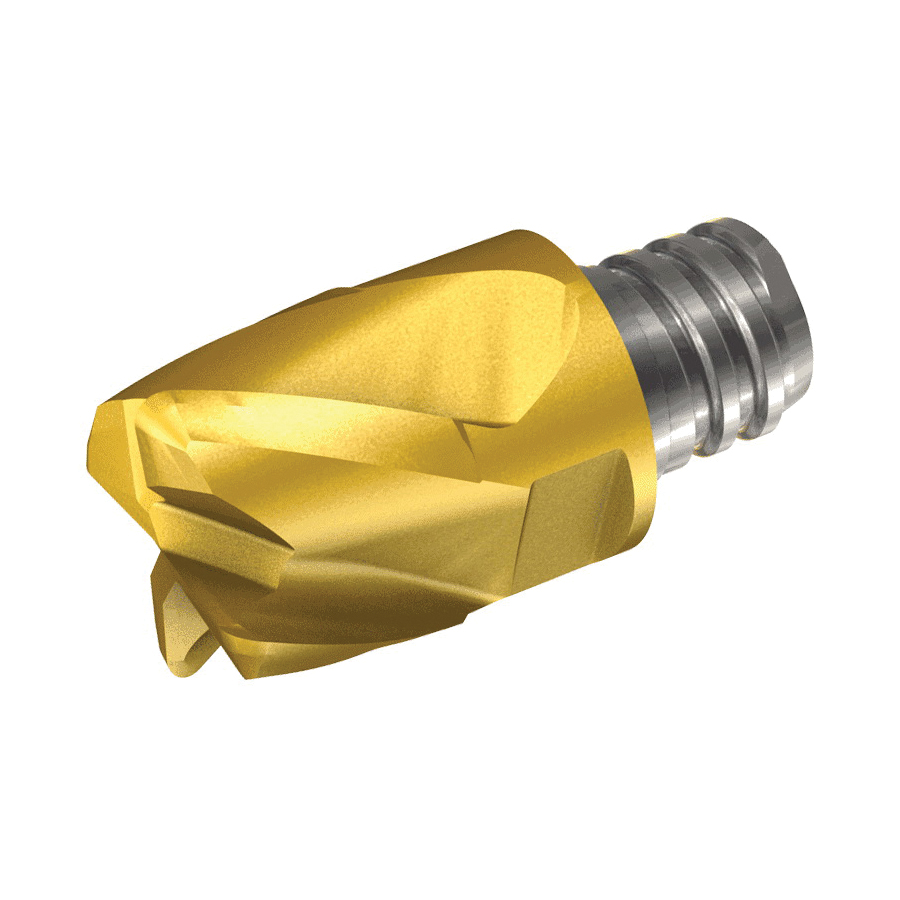

Iscar 5621319 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM EC.375B27R000-4T06 IC908, MM EC-4 Milling Tip Style, End Mill Milling Tip, Solid Carbide, Manufacturers Grade: IC908, 4 Flutes, Material Grade: H, K, M, P, S

Invoice description: Mm Ec.375b27r000-4t06 90 8

UNSPSC: 23291601
Manufacturer PN: 5621319
$103.83 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM EC-4 Milling Tip, End Mill, 3/8 in Cutting Dia, 0.275 in Maximum Depth of Cut, 4 Flutes, Manufacturers Grade: IC908, ANSI Code: MM EC.375B27R000-4T06 IC908, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

  • Features

  • Interchangeable 4 flute solid carbide end mill heads with 45 deg helix and various corner radii

Specifications

ApplicationShouldering, Slotting, Ramp Down, Helical Interpolation, Drill Mill, Plunging and Recessing
ANSI CodeMM EC.375B27R000-4T06 IC908
Cutting Diameter3/8 in
FinishPVD-TiAlN Coated
Manufacturers GradeIC908
MaterialSolid Carbide
Material GradeH, K, M, P, S
Maximum Depth of Cut0.275 in
Milling Tip StyleMM EC-4
Milling Tip TypeEnd Mill
Number of Flutes4
SeriesMULTI-MASTER
TypeInterchangeable

Additional Information

Country of OriginIL
