Iscar ISCAR 5606945

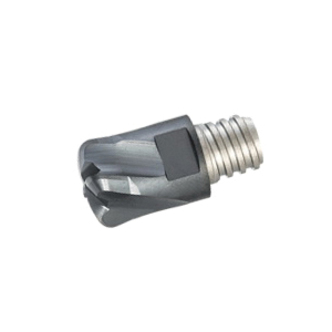

Iscar 5606945 MULTI-MASTER FEEDMILL Interchangeable Milling Head, ANSI Code: MM EFF127T4R2.59-4T08 IC903, MM EFF Milling Tip Style, End Mill Milling Tip, Solid Carbide, 2.59 mm Corner Radius, Manufacturers Grade: IC903, 4 Flutes

UNSPSC: 23291601
Manufacturer PN: 5606945
$149.36 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER FEEDMILL, MM EFF Milling Tip, End Mill, 12.7 mm Cutting Dia, 0.6 mm Maximum Depth of Cut, 4 Flutes, 2.59 mm Corner Radius, Manufacturers Grade: IC903, ANSI Code: MM EFF127T4R2.59-4T08 IC903, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

  • Features

  • For milling at very high feed and small D.O.C

Specifications

ApplicationFast Feed Milling, Profiling, Ramp Down, Helical Interpolation, Slotting, Drill Mill, Plunging and Recessing
ANSI CodeMM EFF127T4R2.59-4T08 IC903
Corner Radius2.59 mm
Cutting Diameter12.7 mm
FinishPVD-TiAlN Coated
Manufacturers GradeIC903
MaterialSolid Carbide
Material GradeH, K, M, P, S
Maximum Depth of Cut0.6 mm
Milling Tip StyleMM EFF
Milling Tip TypeEnd Mill
Number of Flutes4
SeriesMULTI-MASTER FEEDMILL
TypeInterchangeable
