Iscar ISCAR 5605658

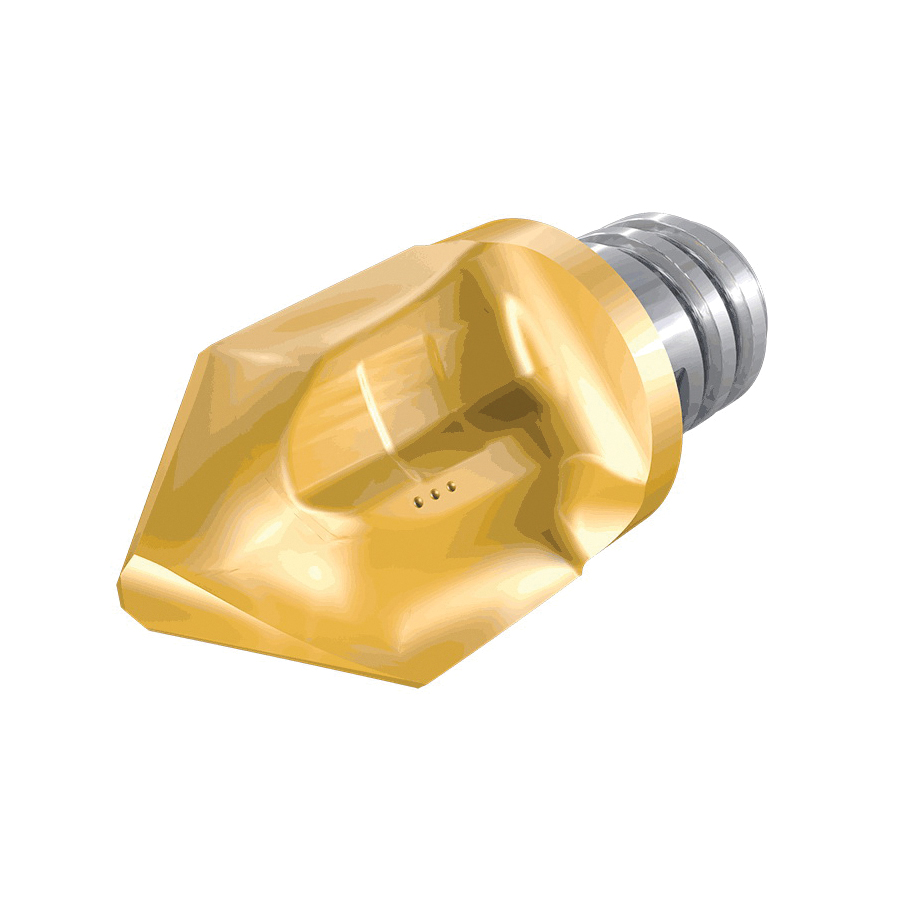

Iscar 5605658 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM HCD120-120-2T08 IC908, MM HCD Milling Tip Style, Chamfer Mill Milling Tip, Solid Carbide, Manufacturers Grade: IC908, 2 Flutes, Material Grade: H, K, M, P, S

Invoice description: Mm Hcd120-120-2t08 Ic908

UNSPSC: 23291601
Manufacturer PN: 5605658
$100.61 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM HCD Milling Tip, Chamfer Mill, 12 mm Cutting Dia, 11.65 mm Maximum Depth of Cut, 2 Flutes, Manufacturers Grade: IC908, ANSI Code: MM HCD120-120-2T08 IC908, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationCountersinking, Drill Milling, Slanted Shouldering and Chamfering
ANSI CodeMM HCD120-120-2T08 IC908
Cutting Diameter12 mm
FinishPVD-TiAlN Coated
Manufacturers GradeIC908
MaterialSolid Carbide
Material GradeH, K, M, P, S
Maximum Depth of Cut11.65 mm
Milling Tip StyleMM HCD
Milling Tip TypeChamfer Mill
Number of Flutes2
SeriesMULTI-MASTER
TypeInterchangeable

Additional Information

Country of OriginIS
