Iscar ISCAR 5604102

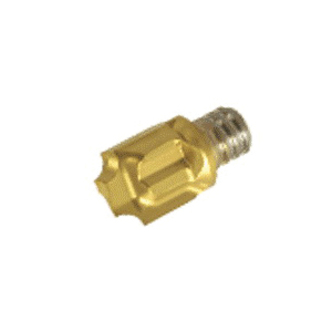

Iscar 5604102 MULTI-MASTER Interchangeable Milling Head, ANSI Code: MM HR3.0/125-6.5-2T08 IC908, MM HR Milling Tip Style, Chamfer Mill Milling Tip, Solid Carbide, 3 mm Corner Radius, Manufacturers Grade: IC908, 2 Flutes, Material Grade: H, K, M, P, S

Invoice description: Mm Hr3.0/125-6.5-2t08 90 8

UNSPSC: 23291601
Manufacturer PN: 5604102
$121.87 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Head, Interchangeable, Series: MULTI-MASTER, MM HR Milling Tip, Chamfer Mill, 12.7 mm Cutting Dia, 12 mm Maximum Depth of Cut, 2 Flutes, 3 mm Corner Radius, Manufacturers Grade: IC908, ANSI Code: MM HR3.0/125-6.5-2T08 IC908, Solid Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

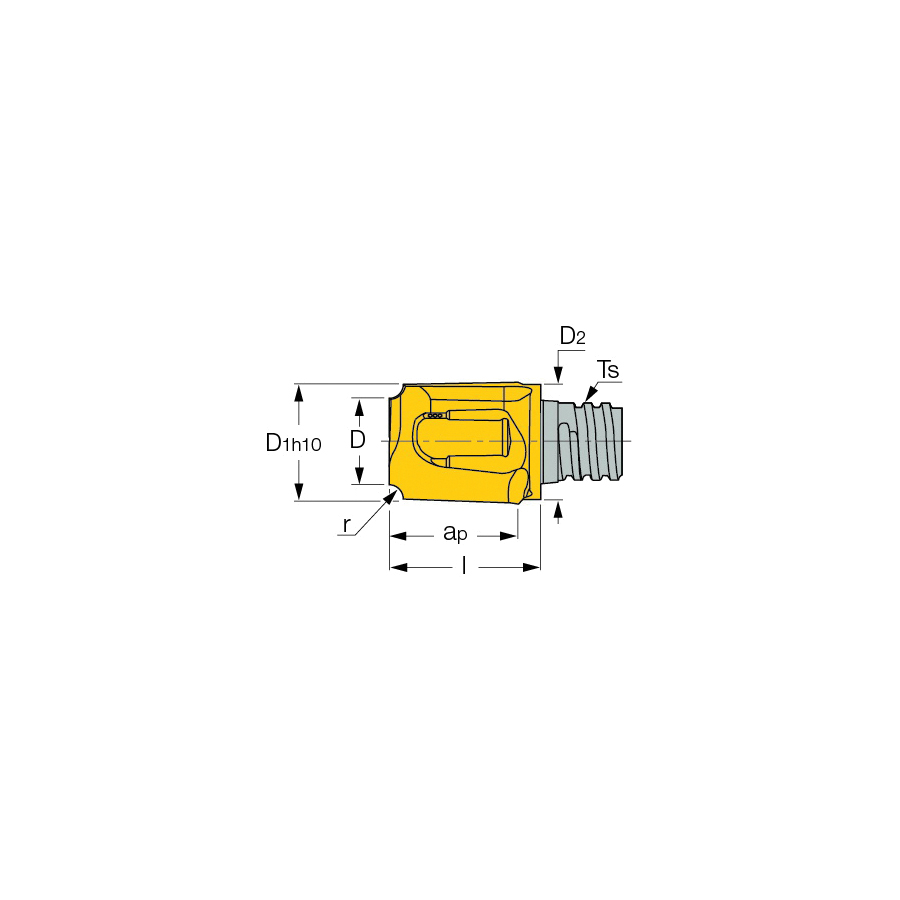

Specifications

ApplicationFor corner rounding applications
ANSI CodeMM HR3.0/125-6.5-2T08 IC908
Corner Radius3 mm
Cutting Diameter12.7 mm
FinishPVD-TiAlN Coated
Manufacturers GradeIC908
MaterialSolid Carbide
Material GradeH, K, M, P, S
Maximum Depth of Cut12 mm
Milling Tip StyleMM HR
Milling Tip TypeChamfer Mill
Number of Flutes2
SeriesMULTI-MASTER
TypeInterchangeable

Additional Information

Country of OriginIS
