Iscar ISCAR 5604039

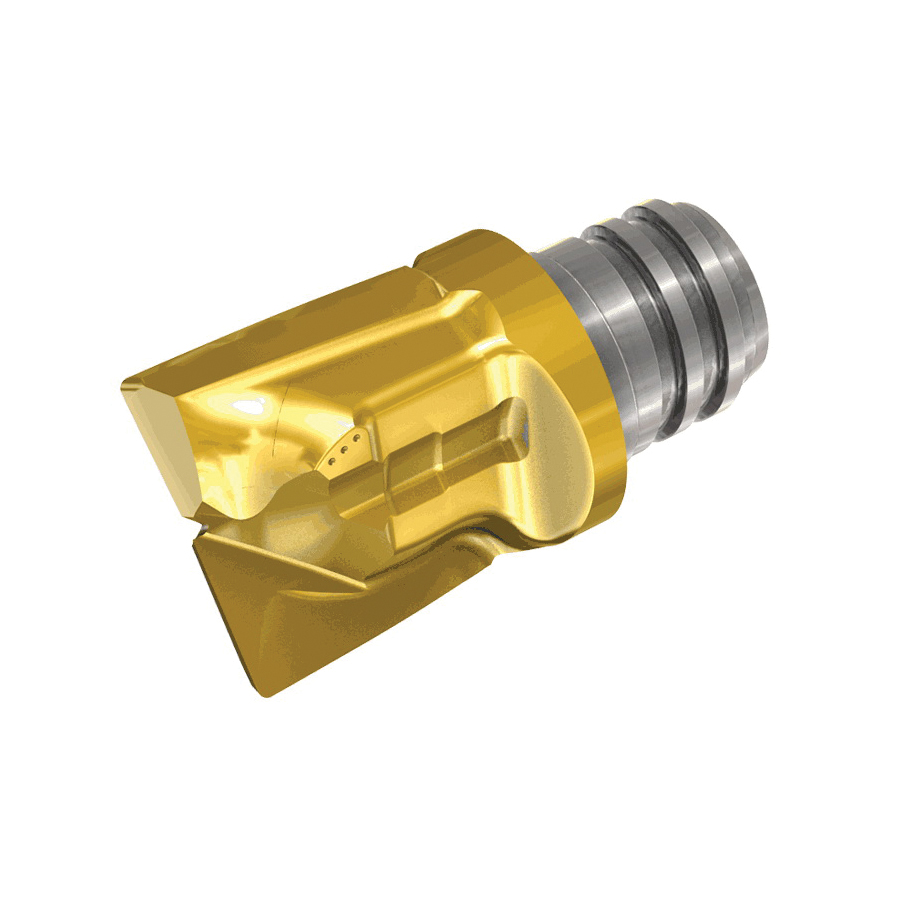

Iscar 5604039 MULTI-MASTER Interchangeable End Mill Head, ANSI Code: MM HC100C10R2.0-2T06, Solid Carbide, 2 mm Corner Radius, Manufacturers Grade: IC908, 2 Flutes
Invoice description:
Mm Hc100c10r2.0-2t06 908
Pack Size: 2
UNSPSC:
23291601
Manufacturer PN: 5604039
$75.40 EA
Factory OrderEstimated to ship in 14 days
Iscar End Mill Head, Interchangeable, Series: MULTI-MASTER, 10 mm Cutting Dia, 9 mm Maximum Depth of Cut, 2 Flutes, 2 mm Corner Radius, Manufacturers Grade: IC908, ANSI Code: MM HC100C10R2.0-2T06, ISO Code: MM HC, Solid Carbide, PVD-TiAlN Coated
Features
- MULTI-MASTER, interchangeable, solid carbide slot drill milling heads with two 10 deg helix flutes
- Available with a variety of corner radii (economical type)
Specifications
ApplicationMilling
ANSI CodeMM HC100C10R2.0-2T06
Corner Radius2 mm
Cutting Diameter10 mm
FinishPVD-TiAlN Coated
ISO CodeMM HC
Manufacturers GradeIC908
MaterialSolid Carbide
Maximum Depth of Cut9 mm
Number of Flutes2
SeriesMULTI-MASTER
TypeInterchangeable
Additional Information
Standards/ApprovalISO 13399
