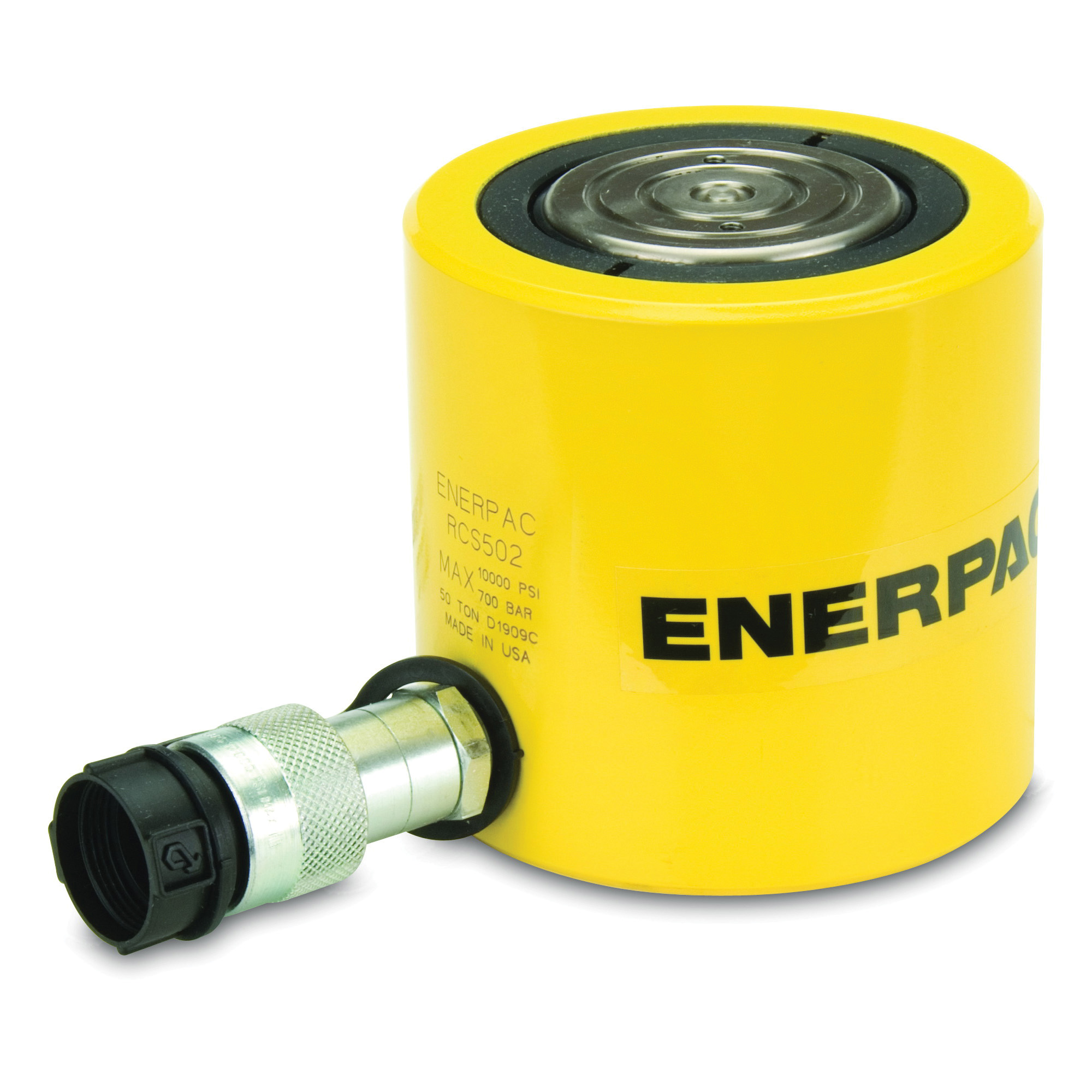

Enerpac ENE RCS502

Enerpac Flat-Jac RCS-502 Low Height Single Acting Spring Return Hydraulic Cylinder, 50 ton Capacity, 3-1/2 in Dia Bore, 2.38 in L Stroke, 4.81 in H Retract, 2-3/4 in Dia Rod, 10000 psi

Invoice description: Cylinder 50 Ton S/a

UPC: 662005302147
UNSPSC: 27121602
Manufacturer PN: RCS-502
$2,034.66 EA
In stock (1)
QTY:


Enerpac Flat-Jac Hydraulic Cylinder, Low Height Single Acting Spring Return, Series: RCS, 50 ton, 3-1/2 in Dia Bore, 2.38 in Stroke, 4.81 in H Retract, 2-3/4 in Rod Dia, 10000 psi, Steel Housing, Baked Enamel, 4.88 in OD

  • Features

  • Lightweight, low profile design for use in confined spaces
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending cylinder life
  • Grooved plunger end with threaded holes for mounting tilt saddles
  • Plated steel plungers
  • Maximum power to height ratio

Specifications

ApplicationRepositioning of Satellite Earth Station Antenna
Bore Size3-1/2 in Dia
Capacity50 ton
Dimensions4.88 in OD
FinishBaked Enamel
Housing MaterialSteel
Pressure Rating10000 psi
Retract4.81 in H
Rod Diameter2-3/4 in
SeriesRCS
Stroke Length2.38 in
TypeLow Height Single Acting Spring Return

Additional Information

IncludesCR-400 Coupler and Dust Cap
Country of OriginCN
