Enerpac ENE RCS201

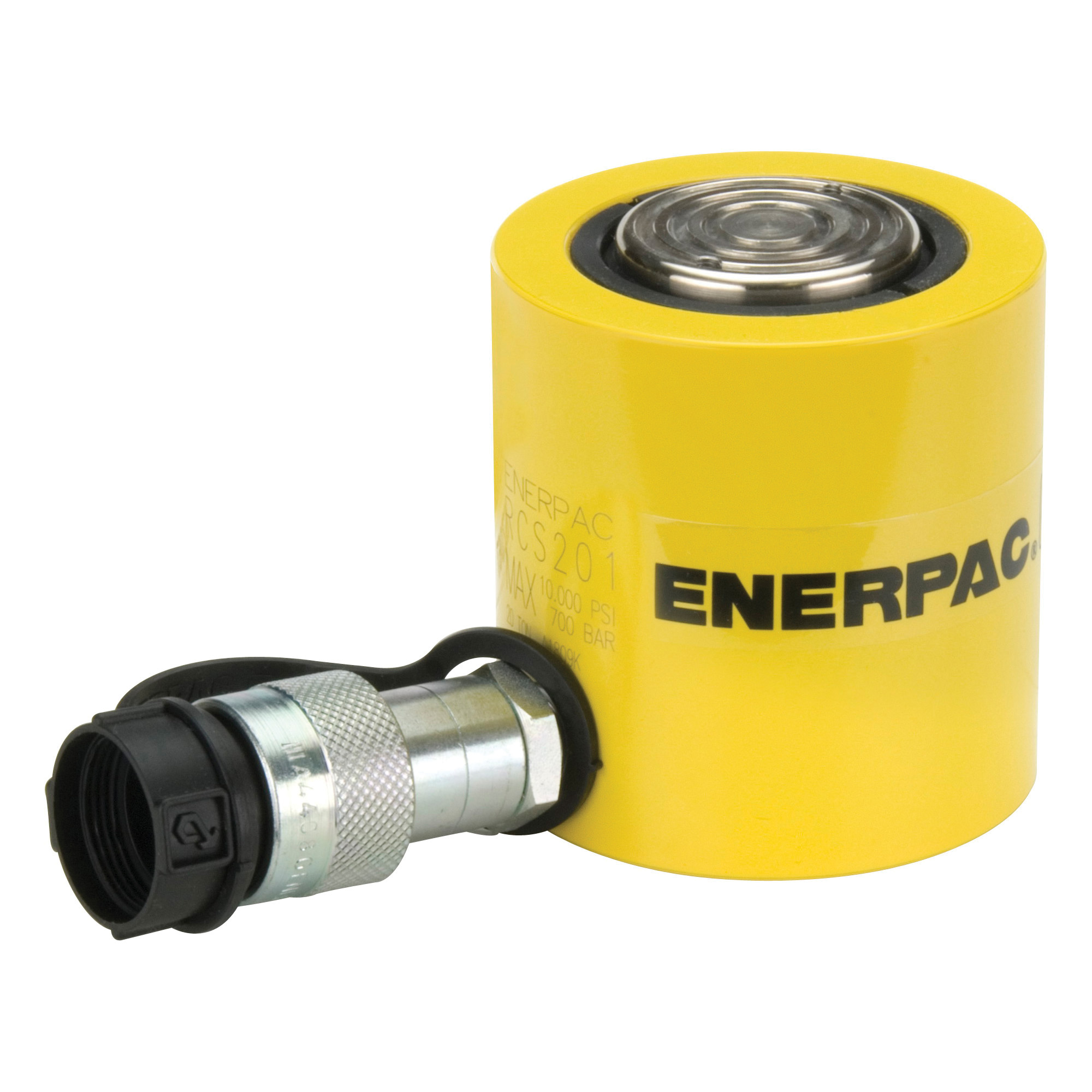

Enerpac Flat-Jac RCS-201 Low Height Single Acting Spring Return Hydraulic Cylinder, 20 ton Capacity, 2.38 in Dia Bore, 1-3/4 in L Stroke, 3.88 in H Retract, 2 in Dia Rod, 10000 psi

UPC: 662005302109
UNSPSC: 27121602
Manufacturer PN: RCS-201
$1,466.52 EA
In stock (1)
QTY:


Enerpac Flat-Jac Hydraulic Cylinder, Low Height Single Acting Spring Return, Series: RCS, 20 ton, 2.38 in Dia Bore, 1-3/4 in Stroke, 3.88 in H Retract, 2 in Rod Dia, 10000 psi, Steel Housing, Baked Enamel, 3.63 in OD

  • Features

  • Lightweight, low profile design for use in confined spaces
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending cylinder life
  • Grooved plunger end with threaded holes for mounting tilt saddles
  • Plated steel plungers
  • Maximum power to height ratio

Specifications

ApplicationRepositioning of Satellite Earth Station Antenna
Bore Size2.38 in Dia
Capacity20 ton
Dimensions3.63 in OD
FinishBaked Enamel
Housing MaterialSteel
Pressure Rating10000 psi
Retract3.88 in H
Rod Diameter2 in
SeriesRCS
Stroke Length1-3/4 in
TypeLow Height Single Acting Spring Return
