Enerpac ENE RC254

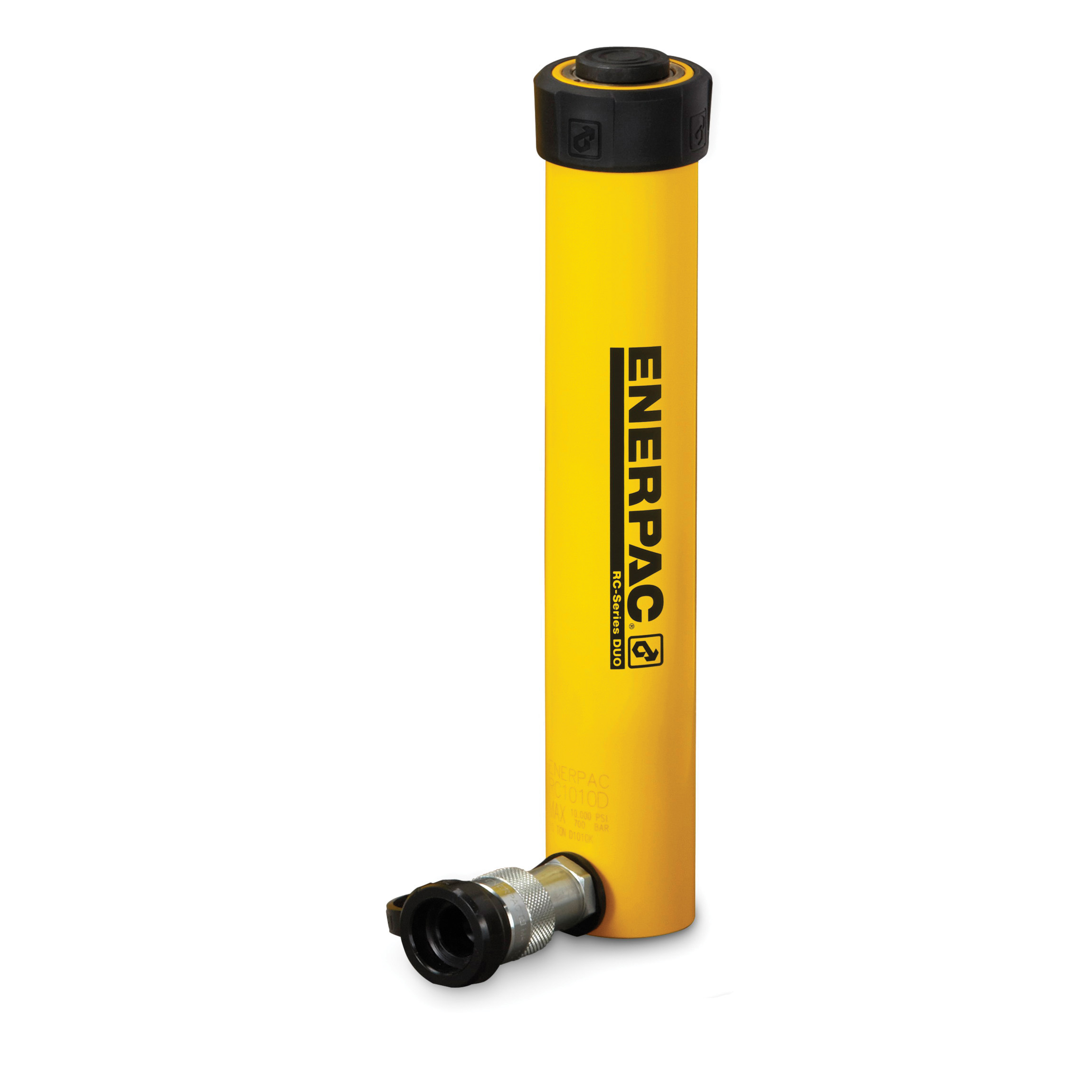

Enerpac RC-254 DUO General Purpose Single Acting Hydraulic Cylinder, 25 ton Capacity, 2.56 in Dia Bore, 4 in L Stroke, 8-1/2 in H Retract, 2.56 in Dia Rod, 700 bar
Invoice description:
Cylinder 25 Ton 4" Strok E 10000 Psi, Spring Re
In stock
(1)
Enerpac Hydraulic Cylinder, DUO General Purpose Single Acting, Series: RC, 25 ton, 2.56 in Dia Bore, 4 in Stroke, 8-1/2 in H Retract, Base Mount, 2.56 in Rod Dia, 700 bar, Alloy Steel Housing, Baked Enamel, 3.38 in OD
Features
- Enerpac RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
- Unique GR2 bearing design, reduces wear, extending life
- Collar threads, plunger threads and base mounting holes enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
Specifications
ApplicationFor safe disposal of old gas cylinders with hydraulic punch set, safely releasing furnace bricks from a steel fixture, removing the wheel studs on a Caterpillar 777 dump truck and repairing the foundation of tilting silo with steel piers
Bore Size2.56 in Dia
Capacity25 ton
Dimensions3.38 in OD
FinishBaked Enamel
Housing MaterialAlloy Steel
Mounting TypeBase
Pressure Rating700 bar
Retract8-1/2 in H
Rod Diameter2.56 in
SeriesRC
Stroke Length4 in
TypeDUO General Purpose Single Acting
Additional Information
IncludesCR-400 Coupler and Dust Cap
Country of OriginCN
