Enerpac ENE RC504

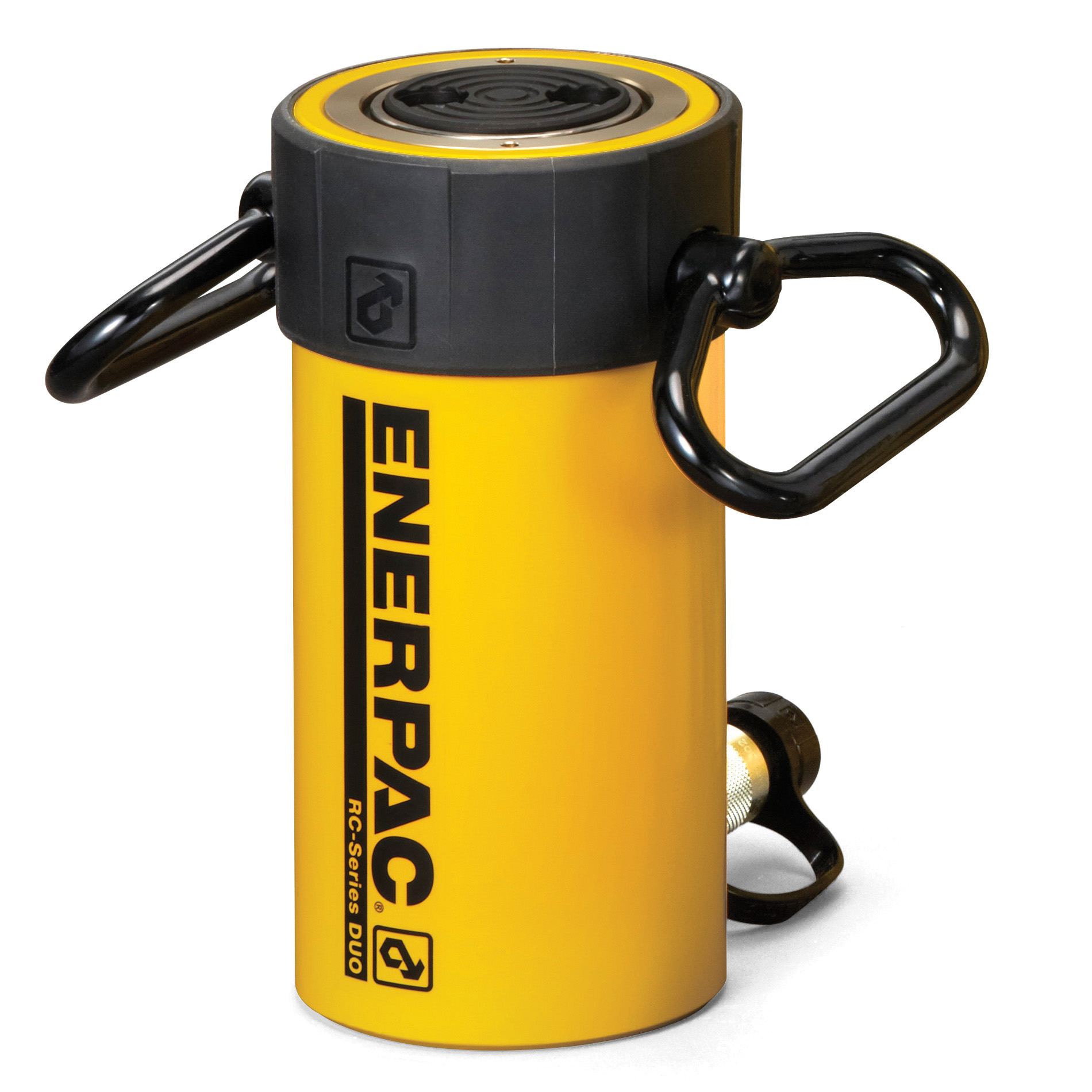

Enerpac RC-504 DUO General Purpose Single Acting Hydraulic Cylinder, 50 ton Capacity, 3-3/4 in Dia Bore, 4 in L Stroke, 8.94 in H Retract, 3-3/4 in Dia Rod, 700 bar
Invoice description:
Cylinder 50 Ton S/a
In stock
(1)
Enerpac Hydraulic Cylinder, DUO General Purpose Single Acting, Series: RC, 50 ton, 3-3/4 in Dia Bore, 4 in Stroke, 8.94 in H Retract, Base Mount, 3-3/4 in Rod Dia, 700 bar, Alloy Steel Housing, Baked Enamel, 5 in OD
Features
- Enerpac RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
- Unique GR2 bearing design, reduces wear, extending life
- Collar threads, plunger threads and base mounting holes enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
Specifications
ApplicationFor safe disposal of old gas cylinders with hydraulic punch set, safely releasing furnace bricks from a steel fixture, removing the wheel studs on a Caterpillar 777 dump truck and repairing the foundation of tilting silo with steel piers
Bore Size3-3/4 in Dia
Capacity50 ton
Dimensions5 in OD
FinishBaked Enamel
Housing MaterialAlloy Steel
Mounting TypeBase
Pressure Rating700 bar
Retract8.94 in H
Rod Diameter3-3/4 in
SeriesRC
Stroke Length4 in
TypeDUO General Purpose Single Acting
Additional Information
IncludesCR-400 Coupler and Dust Cap
Country of OriginCN
