Starrett LSS 449MBZ-75R

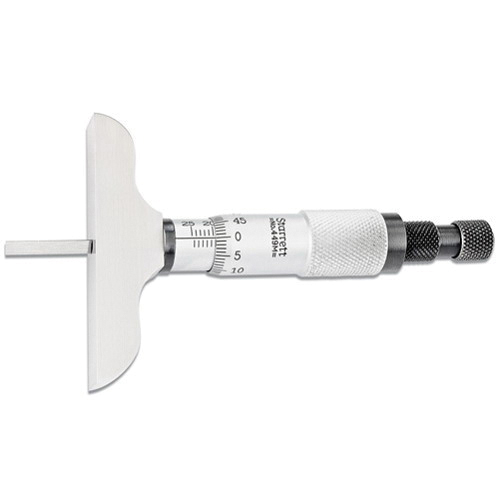

Starrett 449MBZ-75R Mechanical Depth Micrometer With Non-Rotating Blade, 0 to 75 mm, Graduations: 0.01 mm

Invoice description: Micrometer Depth Gages W It H Non-rotating Bl

UPC: 049659566383

UNSPSC: 41111601

Manufacturer PN: 449MBZ-75R

^$656.38 EA

Factory Order

enlarge

Product Overview

Starrett Depth Micrometer, Mechanical, Series: 449M, 0 to 75 mm, +/-0.0025 mm Mic Head, +/-0.005 mm Rods Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Ratchet Thimble

Features
The depths of holes, slots, shoulders and projections can be measured with these fine tools
Non-rotating blade, blade does not turn, but moves perpendicularly only
Combination ratchet and speeder for uniform pressure and quicker adjustment
Ring-type knurled lock nut for quick and sure locking
100 mm base length
1.2 x 3.2 mm rod diameter
3 Rod

Specifications

Accuracy+/-0.0025 mm Mic Head, +/-0.005 mm Rods

Graduations0.01 mm

Measuring Range0 to 75 mm

Resolution0.01 mm

Series449M

Thimble TypeRatchet

TypeMechanical

Additional Information

Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Country of OriginUS
