Starrett LSS 443Z-3RL

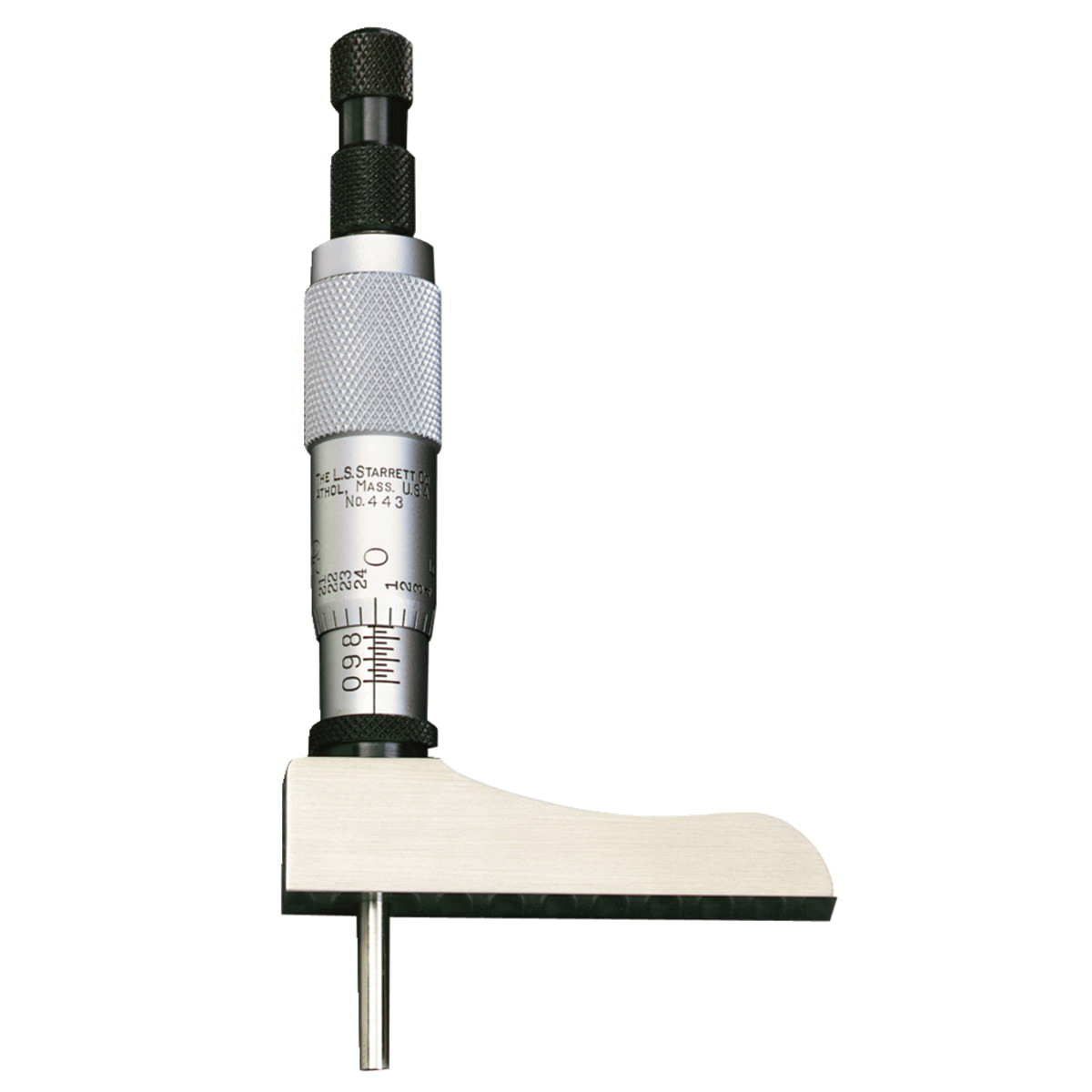

Starrett 443Z-3RL Mechanical Depth Micrometer With Half Base, Padded Case, 0 to 3 in, Graduations: 0.001 in, Satin Chrome

Invoice description: Micrometer Depth Gages W It H Half Base No. 4

UPC: 049659521719

UNSPSC: 41111601

Manufacturer PN: 443Z-3RL

^$530.54 EA

Factory Order

enlarge

Product Overview

Starrett Depth Micrometer, Mechanical, Series: 443, 0 to 3 in, +/-0.0001 in Mic Head, +/-0.0002 in Rods Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Flat Anvil, Flat Spindle, Ratchet Thimble, Satin Chrome

Features
The depths of holes, slots, shoulders and projections can be measured with these fine tools
2 in (50 mm) half base permits measuring depths of holes and slots close to shoulders and between obstructions
Combination ratchet and speeder for uniform pressure and quicker adjustment
Rods have individual length adjustment and are 5/32 in (4 mm) in diameter
Ring-type knurled lock nut for quick and sure locking
3 Rod

Specifications

Accuracy+/-0.0001 in Mic Head, +/-0.0002 in Rods

Anvil TypeFlat

FinishSatin Chrome

Graduations0.001 in

Measuring Range0 to 3 in

Resolution0.001 in

Series443

Spindle TypeFlat

Thimble TypeRatchet

TypeMechanical

Additional Information

IncludesLock Kit, 0.123 X 0.155 X 151 Pin, 0.132 X 0.156 X 0.094 X 0.012 X 2-1/2 Spring, Binder Ring, Adjusting Shell, 0.375-52 Nut, Barrel Spring, 0.291-40 SCR. Spindle, 0.291-40 SCR. Spindle, Outside Shell, Shell Cap, Ratchet Assembly, #2-64 Ratchet Nut, Cap As

Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Country of OriginUS
