Starrett LSS 440Z-3L

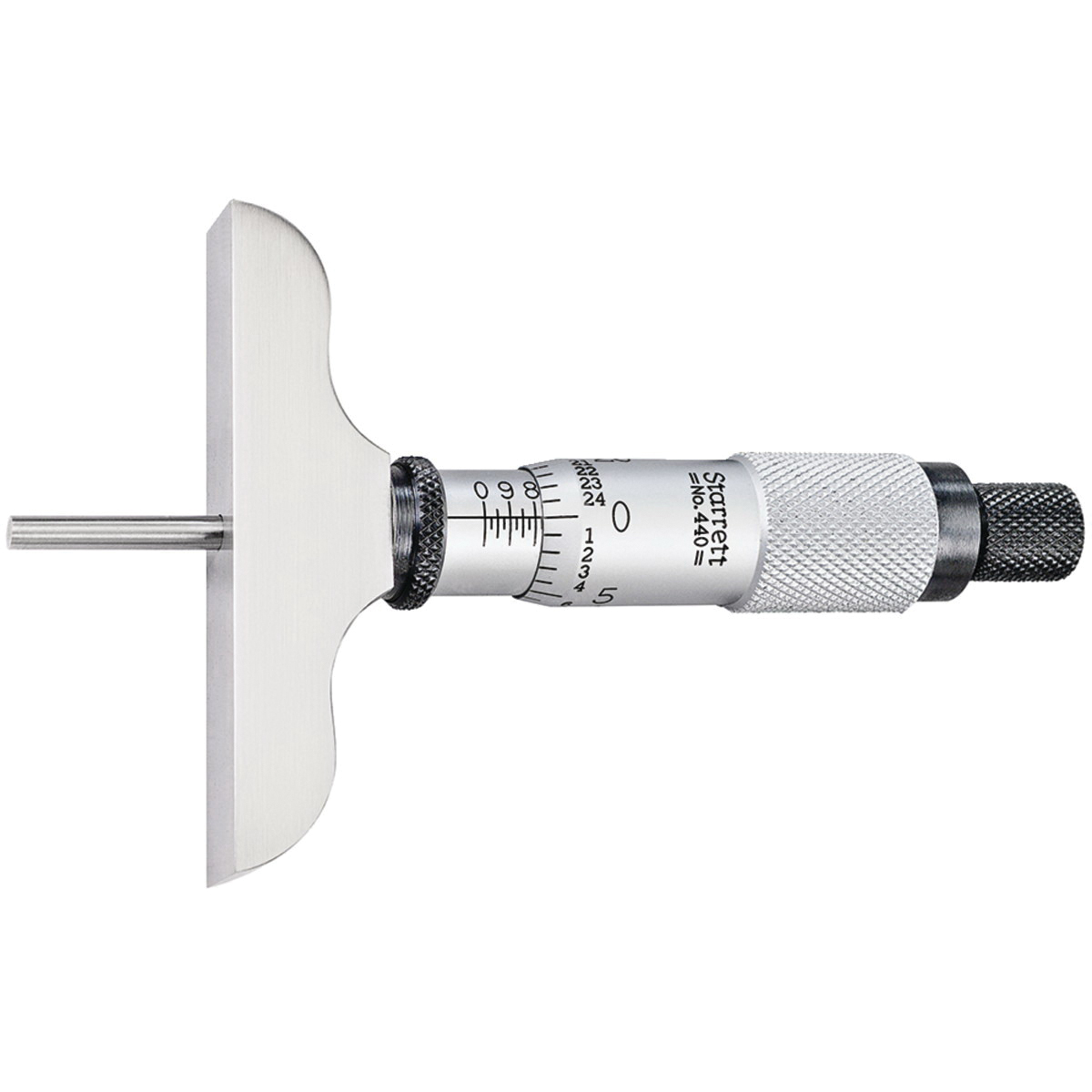

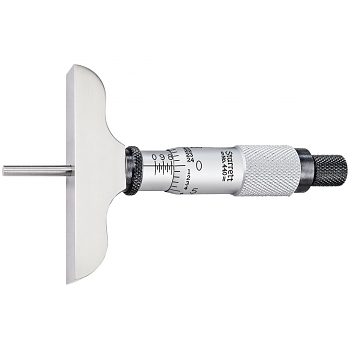

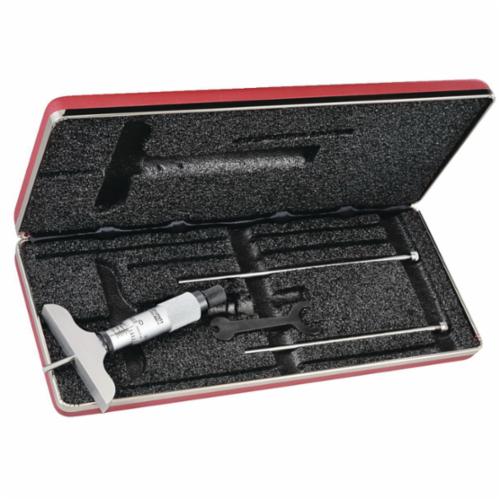

Starrett 440Z-3L Mechanical Depth Micrometer With Padded Case, 0 to 3 in, Graduations: 0.001 in
Invoice description:
Micrometer Depth Gages N O. 440440m Series 0-
Factory Order
Starrett Depth Micrometer, Mechanical, Series: 440, 0 to 3 in, +/-0.0001 in Mic Head, +/-0.0002 in Rods Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Flat Anvil, Flat Spindle, Plain Thimble
Features
- The depths of holes, slots, shoulders and projections can be measured with these fine tools
- 2-1/2 in (63.5 mm) base and 1/8 in (3.2 mm) diameter measuring rods
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Ring-type knurled lock nut for quick and sure locking
Specifications
Accuracy+/-0.0001 in Mic Head, +/-0.0002 in Rods
Anvil TypeFlat
Graduations0.001 in
Measuring Range0 to 3 in
Resolution0.001 in
Series440
Spindle TypeFlat
Thimble TypePlain
TypeMechanical
Additional Information
IncludesAdjusting Shell, Shell Cap, Lock kit, 0.123DX.155DX151L Pin, 0.132X.156X.094X.012X2-1/2 Spring, Binder ring, Barrel Spring, 0.375-52 Nut, Spindle screw, Outside Shell, 0.291-40 Nut, 0-1 in Rod Assembly, 1-2 in Rod Assembly, 2-3 in Rod Assembly, #3 Wrench,
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
