Starrett LSS 440Z-3RL

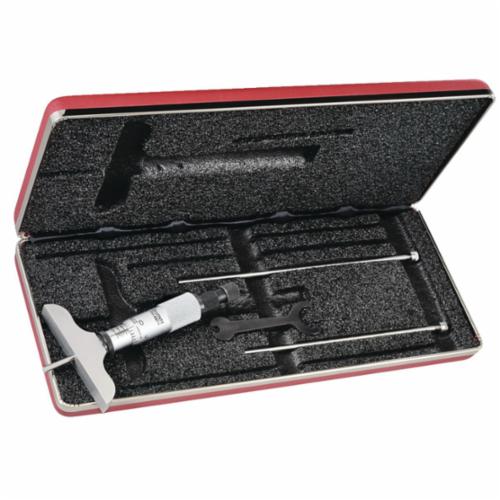

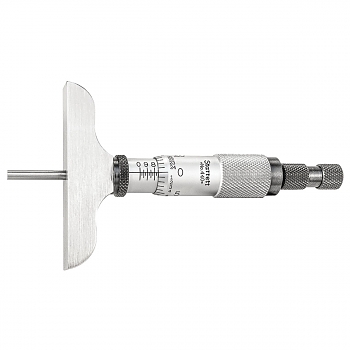

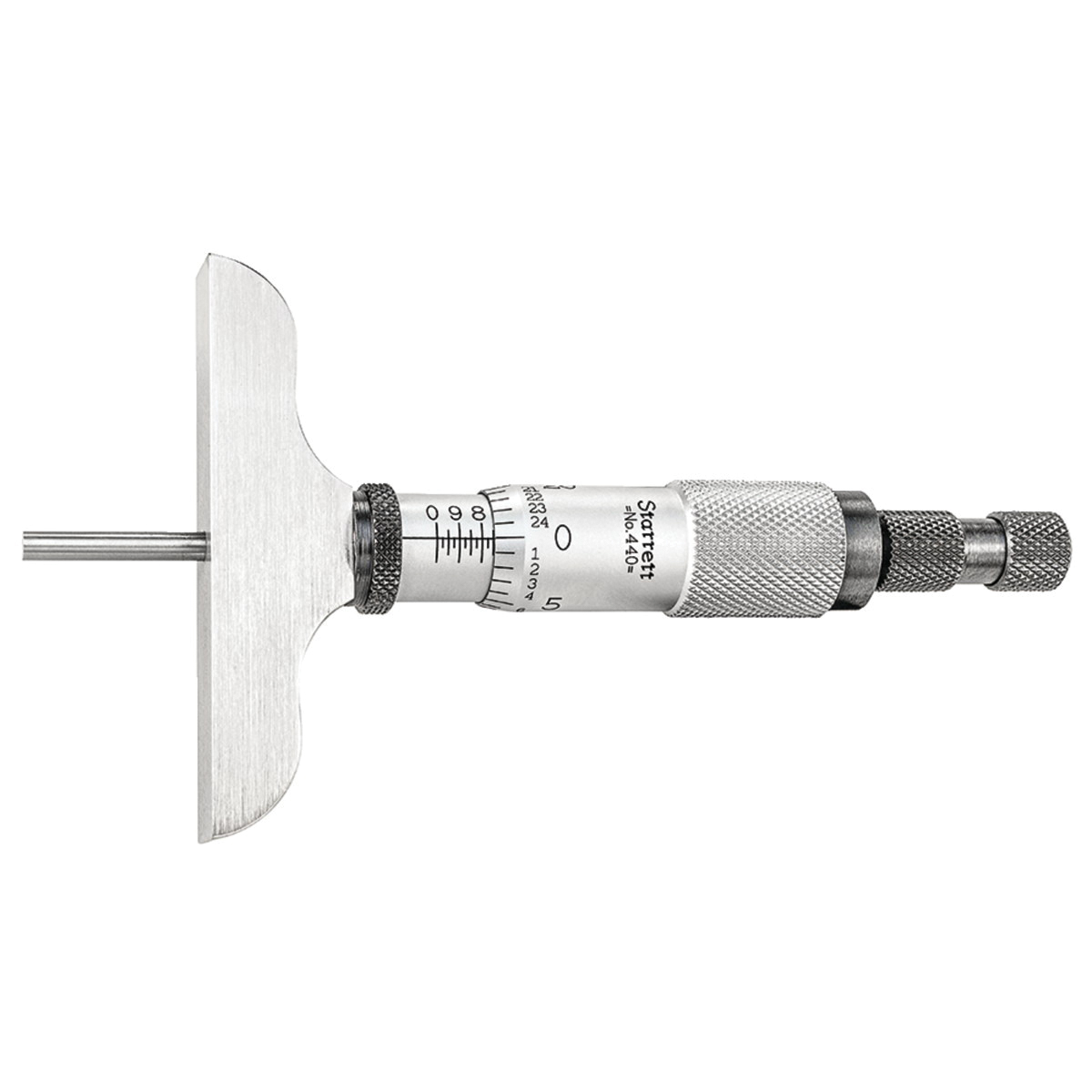

Starrett 440Z-3RL Mechanical Depth Micrometer With Padded Case, 0 to 3 in, Graduations: 0.001 in
Invoice description:
Micrometer Depth Gages N O. 440440m Series 0-
Factory Order
Starrett Depth Micrometer, Mechanical, Series: 440, 0 to 3 in, +/-0.0001 in Mic Head, +/-0.0002 in Rods Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Flat Anvil, Flat Spindle
Features
- The depths of holes, slots, shoulders and projections can be measured with these fine tools
- 2-1/2 in (63.5 mm) base and 1/8 in (3.2 mm) diameter measuring rods
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Ring-type knurled lock nut for quick and sure locking
Specifications
Accuracy+/-0.0001 in Mic Head, +/-0.0002 in Rods
Anvil TypeFlat
Graduations0.001 in
Measuring Range0 to 3 in
Resolution0.001 in
Series440
Spindle TypeFlat
TypeMechanical
Additional Information
IncludesAdjusting Shell, Shell Cap, Lock Kit, 0.123D X 0.155D X 0.165L Pin, 0.132 X 0.156 X 0.094 X 0.012 X 2-1/2 Spring, Binder Ring, Barrel Spring, 0.375-52 Nut, Screw Spindle, Outside Shell, Ratchet Assembly, #2-64 Ratchet Nut, Cap Assembly, 0.066D X 0.156L Ra
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
