Starrett LSS 440MZ-75RL

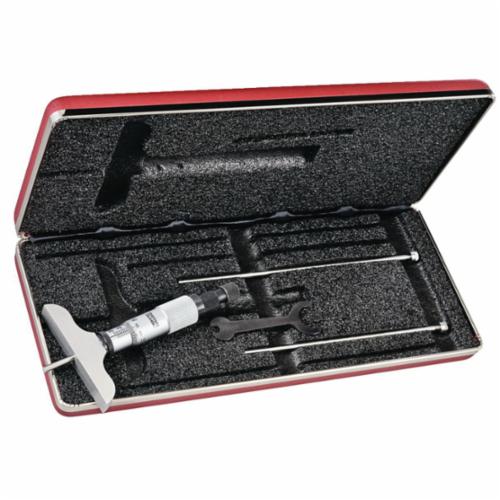

Starrett 440MZ-75RL Mechanical Depth Micrometer With Padded Case, 0 to 75 mm, Graduations: 0.01 mm
Invoice description:
Micrometer Depth Gages N O. 440440m Series 0-
Factory Order
Starrett Depth Micrometer, Mechanical, Series: 440M, 0 to 75 mm, +/-0.0025 mm Mic Head, +/-0.005 mm Rods Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Ratchet Thimble
Features
- The depths of holes, slots, shoulders and projections can be measured with these fine tools
- 63.5 mm (2-1/2 in) base and 3.2 mm (1/8 in) diameter measuring rods
- Combination ratchet and speeder for uniform pressure and quicker adjustment
- Ring-type knurled lock nut for quick and sure locking
Specifications
Accuracy+/-0.0025 mm Mic Head, +/-0.005 mm Rods
Graduations0.01 mm
Measuring Range0 to 75 mm
Resolution0.01 mm
Series440M
Thimble TypeRatchet
TypeMechanical
Additional Information
IncludesAdjusting Shell, Shell Cap, Lock kit, 0.123DX.155DX151L Pin, 0.132X.156X.094X.012X2-1/2 Spring, Binder ring, Barrel Spring, 0.375-52 Nut, Spindle screw, Outside Shell, Ratchet Assembly, #2-64 Ratchet nut, Cap Assembly, 0.066D X .156L Ratchet Pin, 0.041X.0
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
