Starrett LSS 449MAZ-150R

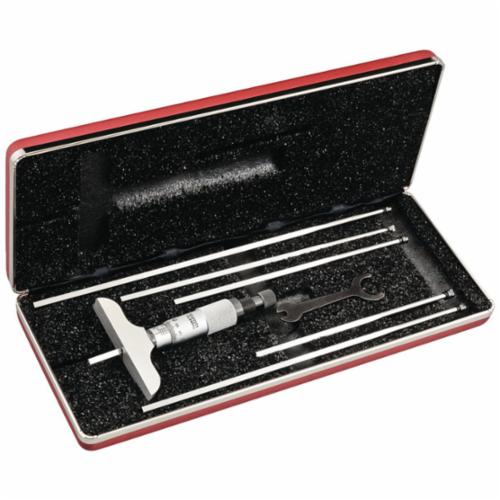

Starrett 449MAZ-150R Mechanical Depth Micrometer With Non-Rotating Blade, 0 to 150 mm, Graduations: 0.01 mm

Invoice description: Micrometer Depth Gages W It H Non-rotating Bl

UPC: 049659566376

UNSPSC: 41111601

Manufacturer PN: 449MAZ-150R

^$767.92 EA

Factory Order

enlarge

Product Overview

Starrett Depth Micrometer, Mechanical, Series: 449M, 0 to 150 mm, +/-0.0025 mm Mic Head, +/-0.005 mm Rods Accuracy, Graduations: 0.01 mm, Ratchet Thimble

Features
The depths of holes, slots, shoulders and projections can be measured with these fine tools
Non-rotating blade, blade does not turn, but moves perpendicularly only
2-1/2 in (63 mm) base
0.045 in thick x 1/8 in wide (1.2 x 3.2 mm) blade
Combination ratchet and speeder for uniform pressure and quicker adjustment
Ring-type knurled lock nut for quick and sure locking
6 Rod

Specifications

Accuracy+/-0.0025 mm Mic Head, +/-0.005 mm Rods

Graduations0.01 mm

Measuring Range0 to 150 mm

Series449M

Thimble TypeRatchet

TypeMechanical

Additional Information

IncludesMicrometer Metric Shell, Shell Cap, Screw Spindle, 0.375-52 Nut, 09183-M Adjusting Shell, Barrel Spring, Ratchet Stop, #4-40 Set x .188 Long Screw, Nut Assembly, #2-64 Ratchet Body Nut, 0.066D x 0.156L Ratchet Pin, Cap Assembly, 0.041 x 0.061 x 0.188 x 0.

Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm

Country of OriginUS
